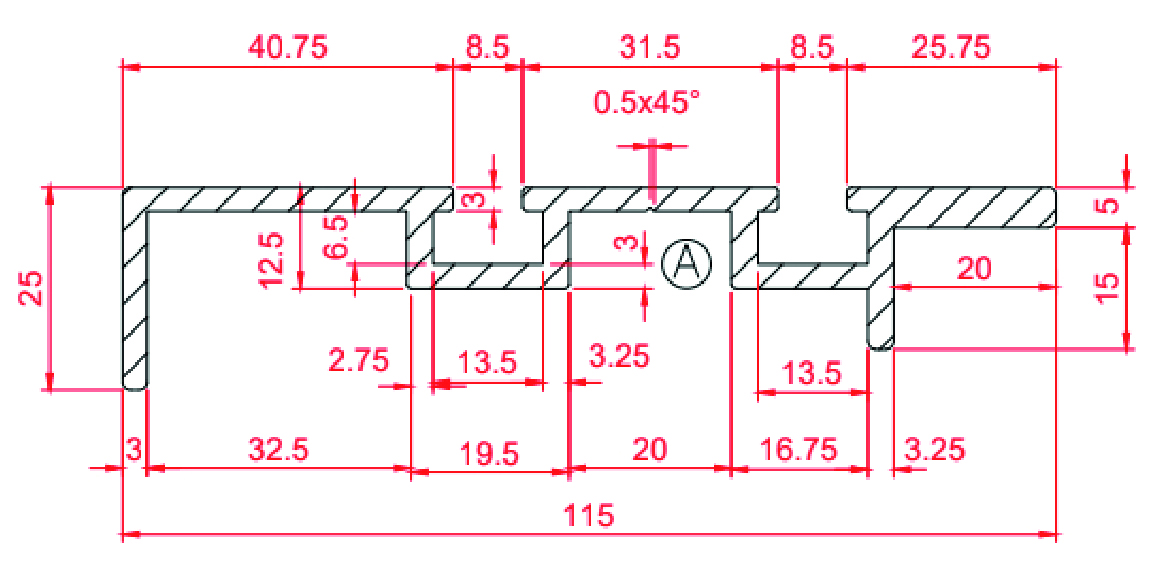

25x115 ANODIZED ALUMINIUM PROFILE for SIDE FRAME
Free Shipping!!
| Stock Code | Material | Section Surroundings (mm) | Moment of Inertia | Moment of Resistance | Area mm2 |
Kg/m | L (m) |
|---|---|---|---|---|---|---|---|
| 765 025 115 | AL | 383 | *Ix=1,909 cm4 / Iy=78,568 cm4 | **Wx=0,1 cm3 / Wy=1,27 cm3 | 626,55 | 1,783 | 6 |
*The moment of inertia of the surface is defined according to the axes that include the surface. It is denoted as Ix and Iy.
**The moment of inertia is divided by the distance between the axis passing through the center of gravity of the object and the farthest point to it, and the moment of strength is obtained. It is shown as Wx and Wy.
Momentum of Inertia is expressed as 4 to the cm, and moment of strength as cubic cm.
