857 CRATE CHAIN
Free Shipping!!

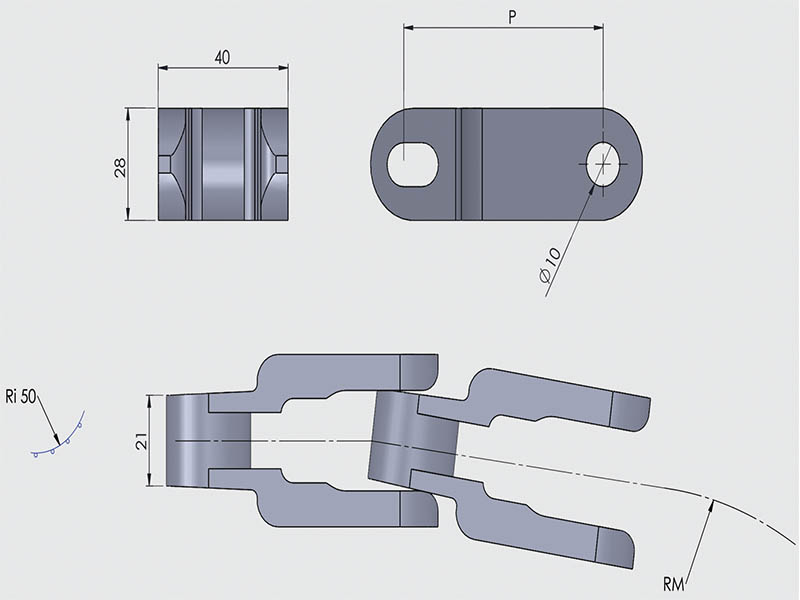

| Pitch | : 63,5 mm |
| Thickness | : 28 mm |
| Width | : 40 mm |
| Colour | : White |
| Cleanability | : Average |
| Pin Diameter | : 10 mm |
| Major Diameter | : Up to the sprocket dimension |
|
|

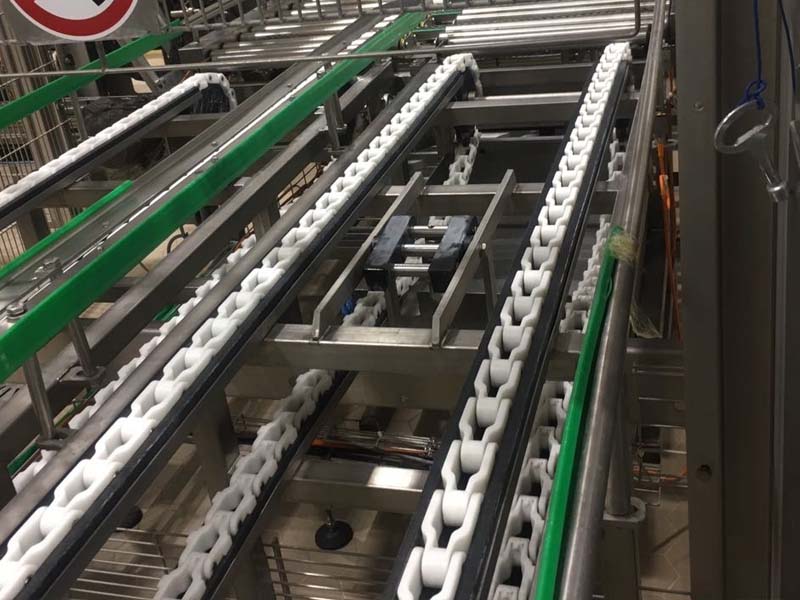

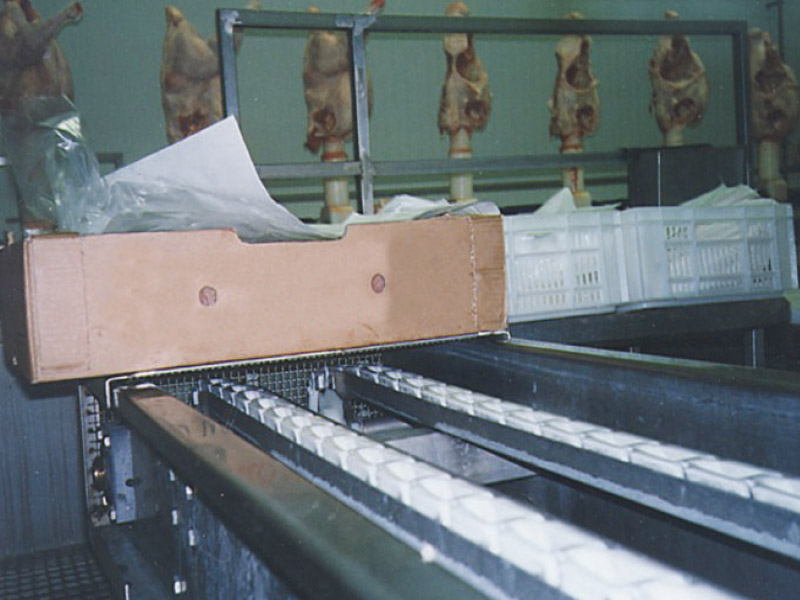

ALHAN Crate Chain with 63.5 mm pitch is both hygienic, comfortable and FDA approved like many ALHAN products, ALHAN Crate Conveyor Belt is preferably a plastic chain suitable for plastic, wooden case and box transportation. Especially in the food industry, it is preferred over white and red meat processing plants.

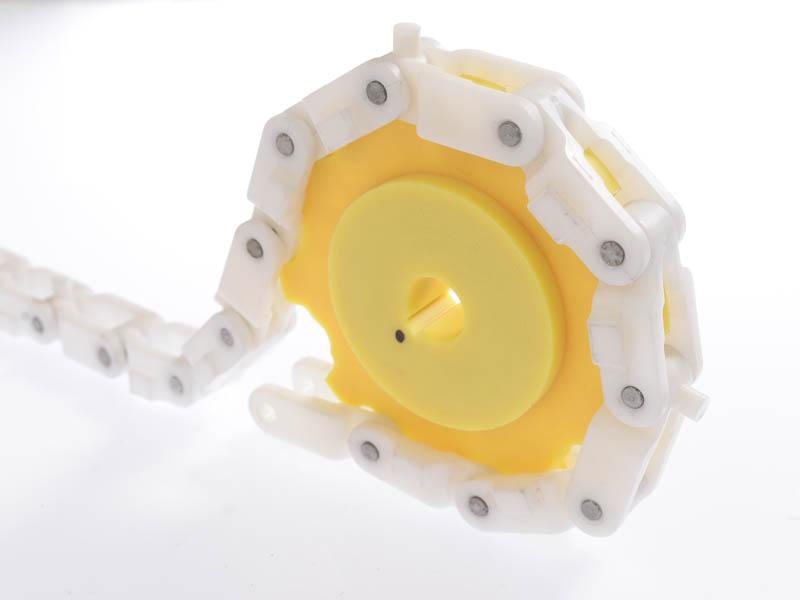

The case transport chain sprocket is available in a variety of diameters and teeth. ALHAN Chassis Transport Chain sprocket is available in various diameters and teeth. Since the hole sizes will be produced upon your request, please specify the hole sizes when ordering.
For example, D25 in 380 D25 K08 represents the keyed hole size.
855 - 857 - 858 series Skids used for smooth linear bearing of Alhan frame conveyor belts are also produced, the material is Alpolen UHMW 1000, please also consider the bearing issue. Correct bedding and material selection extends the life of this type of plastic chain.
| Stock Code | RM | PIN | P | Material | Kg / m | Meter (m) |
|---|---|---|---|---|---|---|
| 857 B00 POM | 650 | Stainless Steel AISI 304 | 63,5 | POM White | 0,843 | 3,048 |
| 857 B00 PP | 650 | Stainless Steel AISI 304 | 63,5 | PP White | 0,843 | 3,048 |
