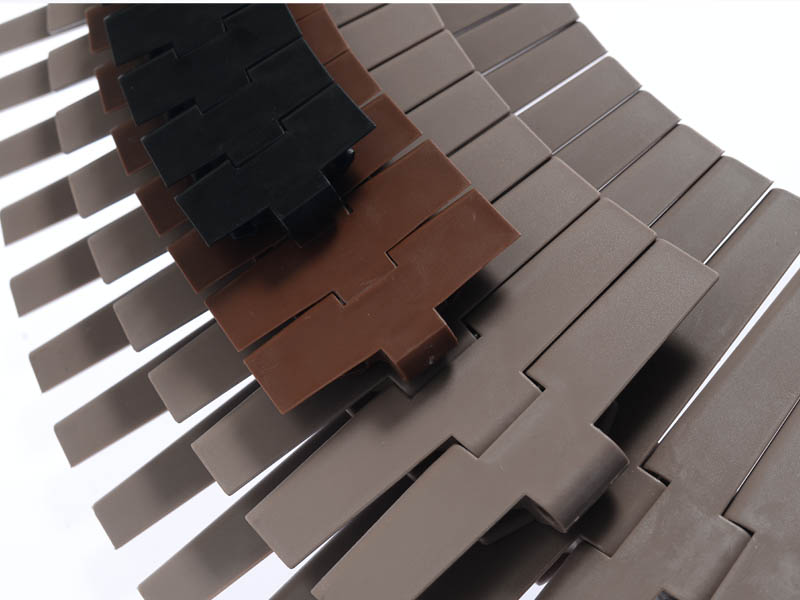

880 SIDEFLEXING CHAIN FOR CURVED CONVEYORS
Free Shipping!!
| Pitch | : 38,1mm |
| Thickness | : 19 mm |
| Open Surface Ratio (%) | : Flat Top 0% |
| Width | : 82,6 mm (As shown on the table) |
| Colour | : Brown (*Production can be done in different colors.) |
| Pin Diameter | : 6mm |
| Major Diameter | : Up to the sprocket dimensions |
 |
Related Products

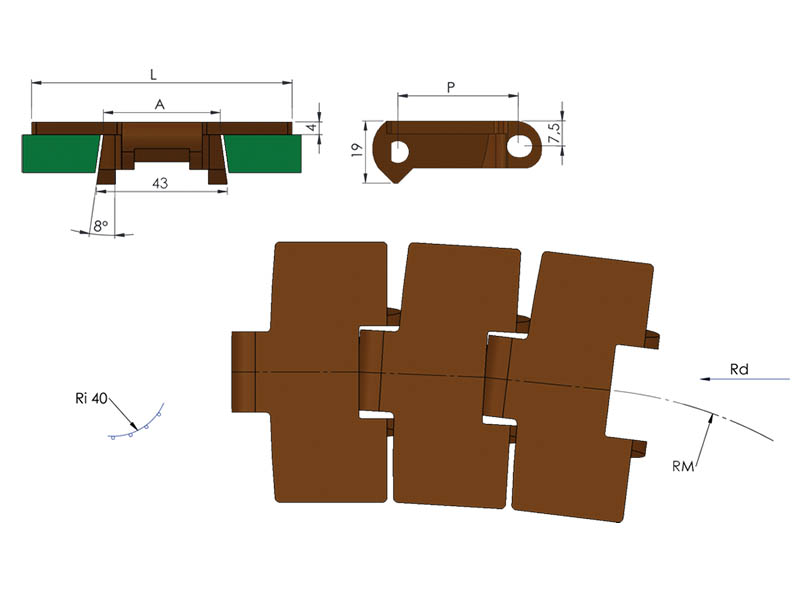

| [ Stock Code ] | P (mm) | L (mm) | RM (mm) | Material | PIN | Kg / m | Meter (m) |  |
|---|---|---|---|---|---|---|---|---|
| 880 TKO 082 | 38,1 | 82,6 | 457 | Brown Acetal (LF) | Stainless Steel (AISI 304) | 1,04 | 3,048 | 10 |
| 880 TKO 114 | 38,1 | 114,3 | 550 | Brown Acetal (LF) | Stainless Steel (AISI 304) | 1,21 | 3,048 | 10 |
