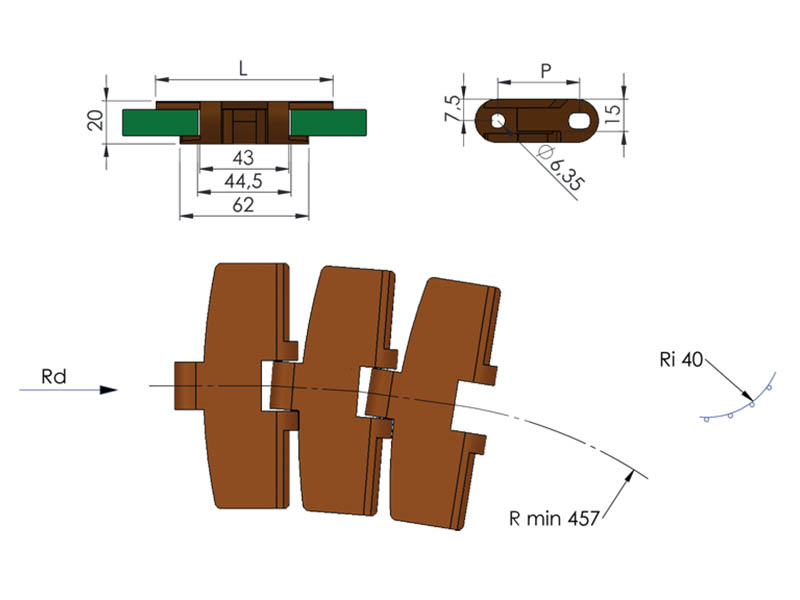

880 TAB - PLATE CURVED FOR CURVED CONVEYORS
Free Shipping!!
| Pitch | : 38,1 mm |
| Thickness | : 13 mm |
| Open Surface Ratio (%) | : Flat Top 0% |
| Width | : 82,6 mm (As shown on the table) |
| Colour | : Brown, Gray |
| Pin Diameter | : 6 mm |
| Cleanability Average | : (FDA Food Grade) |
| Major Diameter | : Up to the sprocket dimensions |
 |
Related Products
| Stock Code | P | L | RM | Material | PIN | Kg / m | Meter (m) |  |
|---|---|---|---|---|---|---|---|---|
| 880 TBG 082 | 38,1 | 82,6 | 457 | Gray Acetal (D) | Stainless Steel AISI 304 | 1,04 | 3,048 | 10 |
| 880 TBG 114 | 38,1 | 114,3 | 550 | Gray Acetal (D) | Stainless Steel AISI 304 | 1,21 | 3,048 | 10 |
| 880 TBS 082 | 38,1 | 82,6 | 457 | Black Acetal | Stainless Steel AISI 304 | 1,04 | 3,048 | 10 |
| 880 TBS 114 | 38,1 | 114,3 | 550 | Black Acetal | Stainless Steel AISI 304 | 1,21 | 3,048 | 10 |
| 880 TBK 082 | 38,1 | 82,6 | 457 | Brown Acetal (LF) | Stainless Steel AISI 304 | 1,04 | 3,048 | 10 |
| 880 TBK 114 | 38,1 | 114,3 | 550 | Brown Acetal (LF) | Stainless Steel AISI 304 | 1,21 | 3,048 | 10 |
| 880 TBB 082 | 38,1 | 82,6 | 457 | White Acetal | Stainless Steel AISI 304 | 1,04 | 3,048 | 10 |
| 880 TBB 114 | 38,1 | 114,3 | 550 | White Acetal | Stainless Steel AISI 304 | 1,21 | 3,048 | 10 |
| 880 TPB 082 | 38,1 | 82,6 | 457 | White Polypropylene | Polypropylene | 0,8 | 3,048 | 10 |
| 880 TPB 114 | 38,1 | 114,3 | 550 | White Polypropylene | Polypropylene | 1 | 3,048 | 10 |
| 880 TPG 082 | 38,1 | 82,6 | 457 | Gray Polypropylene | Polypropylene | 0,8 | 3,048 | 10 |
| 880 TPG 114 | 38,1 | 114,3 | 550 | Gray Polypropylene | Polypropylene | 1 | 3,048 | 10 |
| 880 TPK 082 | 38,1 | 82,6 | 457 | Brown Polypropylene | Polypropylene | 0,8 | 3,048 | 10 |
| 880 TPK 114 | 38,1 | 114,3 | 550 | Brown Polypropylene | Polypropylene | 1 | 3,048 | 10 |
| 880 TPP 190 | 38,1 | 190,5 | 610 | White Polypropylene | Stainless Steel AISI 304 | 2,2 | 3,048 | 10 |
| 880 TGP 190 | 38,1 | 190,5 | 610 | "Gray Polypropylene" | Stainless Steel AISI 304 | 2,2 | 3,048 | 10 |
| 880 TKP 190 | 38,1 | 190,5 | 610 | Brown Polypropylene | Stainless Steel AISI 304 | 2,2 | 3,048 | 10 |
