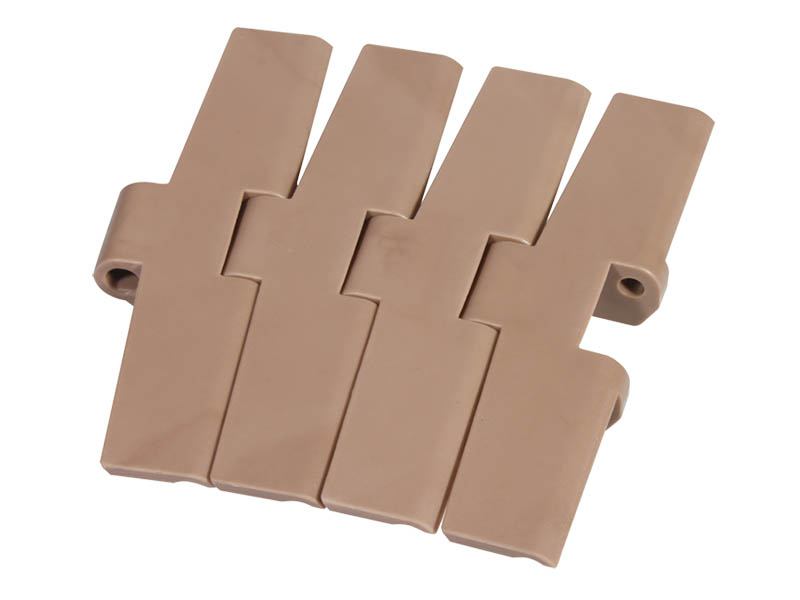

882 TAB SIDE FLEXIBLE PLATE CHAIN
Free Shipping!!

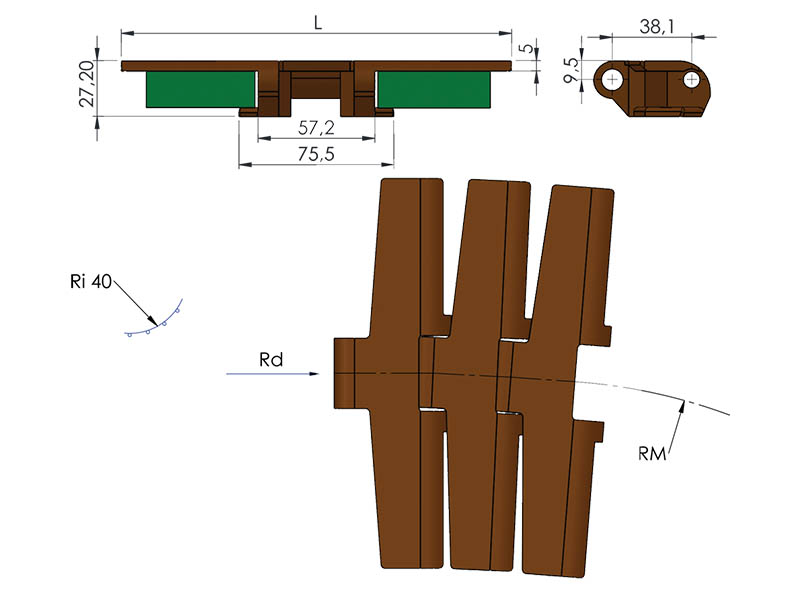

| Pitch | 38,1mm |
| Thickness | 27,2mm |
| Open Surface Ratio (%) | Flat Top 0% |
| Width | 190,5 - 254 - 304,8 mm |
| Colour | Brown / Gray |
| Cleanability | Average (FDA Food Grade) |
| Pin Diameter | 6 mm |
| Major Diameter | Up to the sprocket dimensions |
| mm |  |
||||||||
|---|---|---|---|---|---|---|---|---|---|
| Stock Code | RM | L | P | Material | PIN | Kg / m | Meter (m) |
Feet (ft) |
|
| 882 TBK 190 | 610 | 190,5 | 38,1 | POM Polycacetal | Brown | Stainless Steel (AISI 304) | 2,43 | 3,048 | 10 |
| 882 TBG 190 | 610 | 190,5 | 38,1 | POM Polycacetal | Gray | Stainless Steel (AISI 304) | 2,43 | 3,048 | 10 |
| 882 TBK 254 | 610 | 254 | 38,1 | POM Polycacetal | Brown | Stainless Steel (AISI 304) | 2,87 | 3,048 | 10 |
| 882 TBG 254 | 610 | 254 | 38,1 | POM Polycacetal | Gray | Stainless Steel (AISI 304) | 2,87 | 3,048 | 10 |
| 882 TBK 304 | 610 | 304,8 | 38,1 | POM Polycacetal | Brown | Stainless Steel (AISI 304) | 3,41 | 3,048 | 10 |
| 882 TBG 304 | 610 | 304,8 | 38,1 | POM Polycacetal | Gray | Stainless Steel (AISI 304) | 3,41 | 3,048 | 10 |
