910 DROP FILTERED BELT

Size

Free Shipping!!

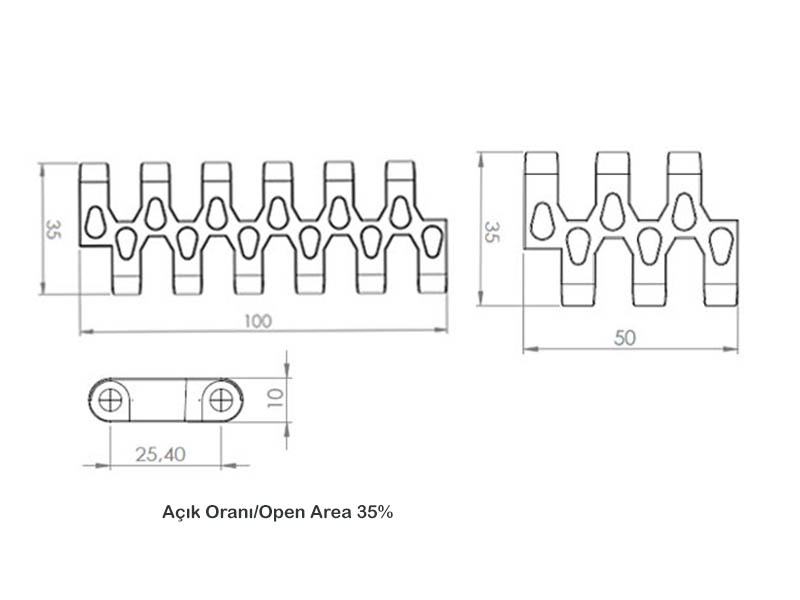

Pitch 25.4m
Thickness 10 mm
Open Surface Ratio (%) Open Surface 35%
Width 50mm - 100mm - 250mm
Widthness 16 mm
Colour White/Blue/Gray
Cleanability Average (FDA Food Grade)
Pin Diameter  4,6 mm
Major Diameter Up to the sprocket size

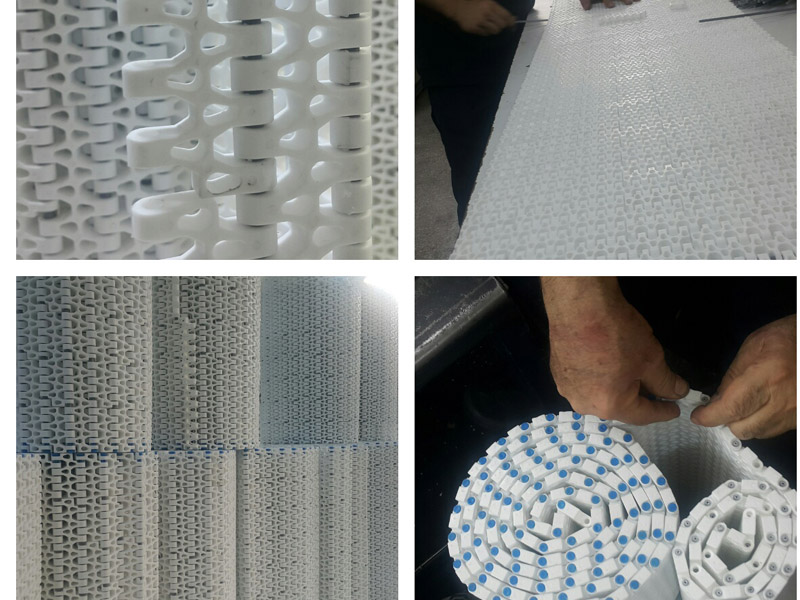

ALHAN® belts with smooth linear surface have a locking system that can be easily changed in case of damage to the (modular) mesh tape in the dimensions you want. It is compatible with various industries – 46 +110 (It can be applied with different materials for places that require special working conditions.) When you prefer long conveyor lines, our ALHAN 25,4 mm pitch (1 inch) mesh belts are preferred in the following situations. It does not require much supervision due to its high strength properties. ALHAN (modular) Wire Mesh Belt for healthy transportation is long-lasting, requires less maintenance and saves energy. ALHAN (modular) Knitted belts have less initial investment and are an innovative product.

Polyacetal (POM) Plastic (modular) mesh belts are the solution for frozen products – they can work at 46 +70 degrees.

Polypropylene (PP) Plastic (modular) mesh tapes are more resistant to acidic basic and salty environments at +1 + 110 degrees.

Model 910 (modular) drop filtered belt surface is flat and smooth, and is suitable for the food industry with its clean structure. It has FDA food grade document approval.

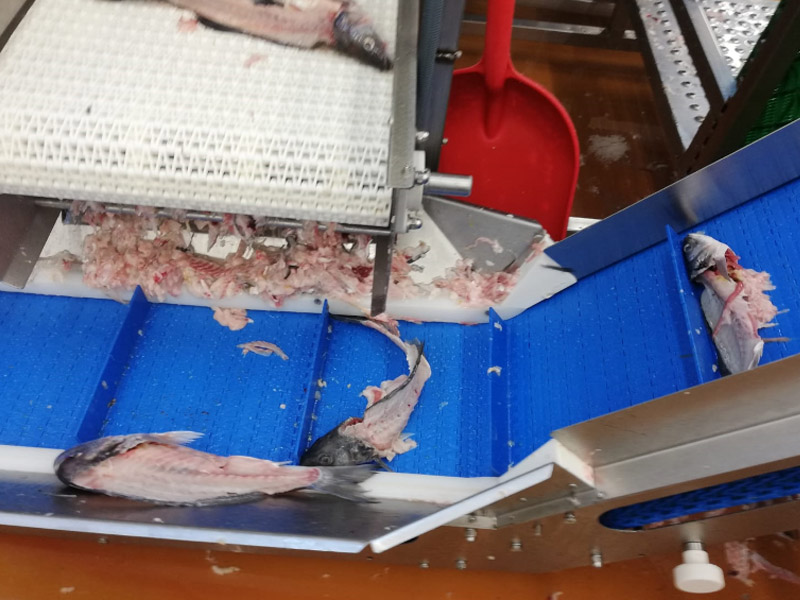

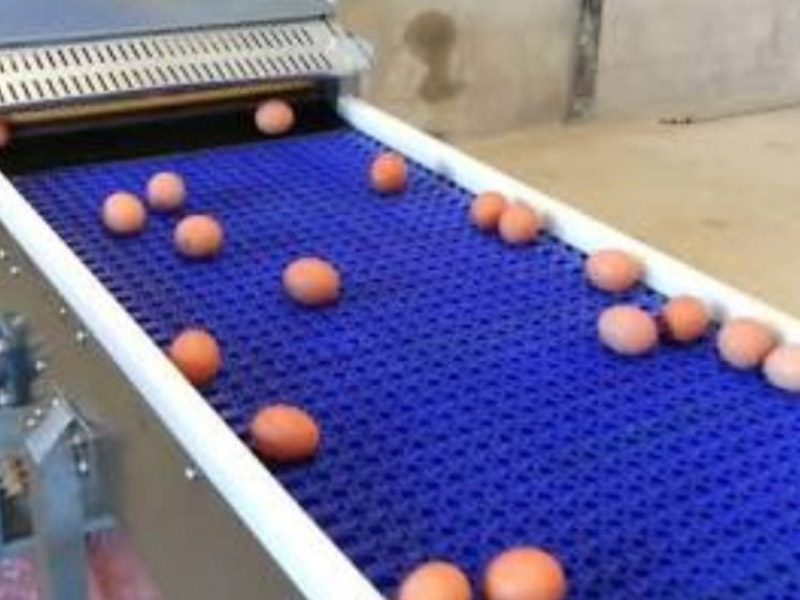

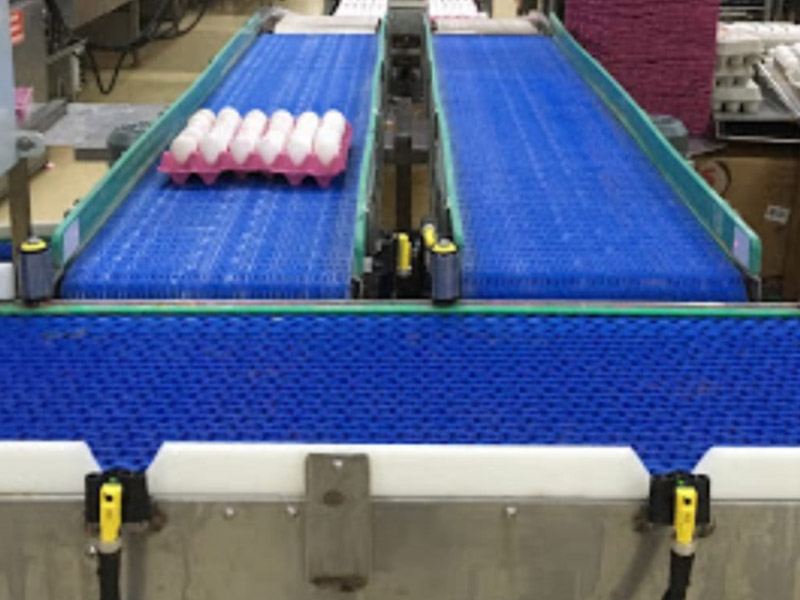

The industrial areas of the usage of 25,4mm drop filtered modular belt;

Stock Code P Color L Material  PIN Chain Strength (N/m) Kg / m2
910 B01 K01 25,4  White (B) 152,4 Polypropylene PP 21160 4,300 m
910 B02 K01 25,4 White (B) 152,4 Polyacetal PA 20400 6,700 m
910 M01 K01 25,4 Blue (M) 152,4 Polypropylene PP 35200 4,300 m
910 M02 K01 25,4 Blue (M) 152,4 Polyacetal PA 34100 6,700 m



Polypropylene (PP) +1 +110
Polyacetal (POM) -40 +90
Polyethylene (PE) -60 +100
