920 25,4mm EASY-to-CLEAN BELT CLEAT
Free Shipping!!

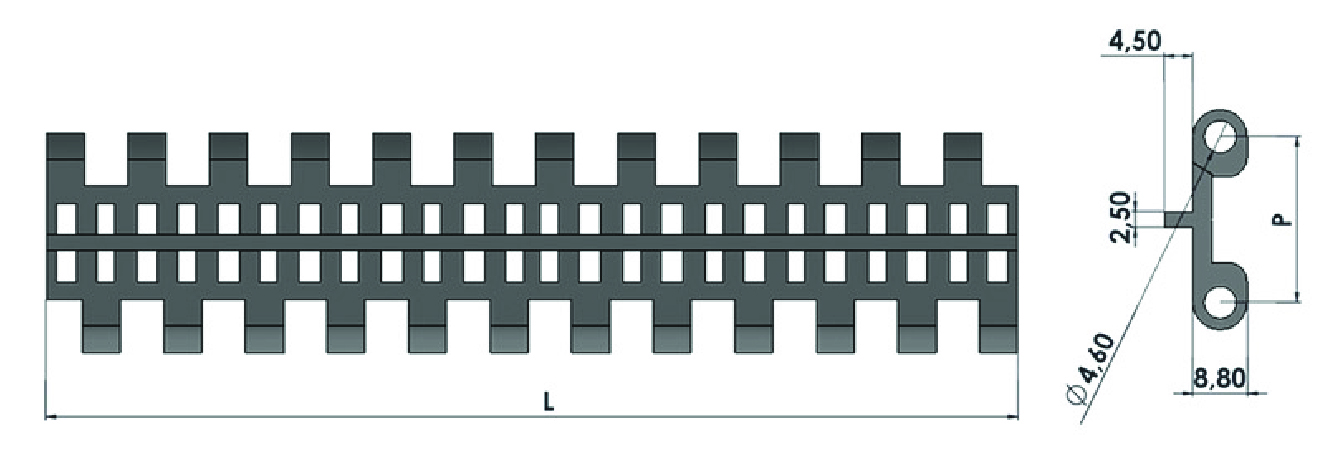

| Pitch | 25.4mm |
| Belt Thickness | 8,8mm |
| Open Surface Ratio | Open Surface %20 |
| Width of the Modular | 152,4 mm |
| Widthness | 25 mm |
| Colour | White/Blue/Gray |
| Cleanability | Perfect (FDA Food Grade) |
| Pin Diameter | 4,6 mm |
| Major Diameter | Up to the sprocket size |
| Cleat | Height: 4,5mm |
|
|
| Polypropylene (PP) | +1 | +110 |
| Polyacetal (POM) | -40 | +90 |
| Polyethylene (PE) | -60 | +100 |
| Stock Code | P | Color | L | Material | PIN | Chain Strength (N/m) | Kg / m2 |  |
|---|---|---|---|---|---|---|---|---|
| 920 B01 K01 | 25,4 | White (B) | 152,4 | Polypropylene | PP | 21160 | 2,600 | m |
| 920 B02 K01 | 25,4 | White (B) | 152,4 | Polyacetal | PA | 20400 | 3,900 | m |
| 920 M01 K01 | 25,4 | Blue (M) | 152,4 | Polypropylene | PP | 35200 | 2,600 | m |
| 920 M02 K01 | 25,4 | Blue (M) | 152,4 | Polyacetal | PA | 34100 | 3,900 | m |
