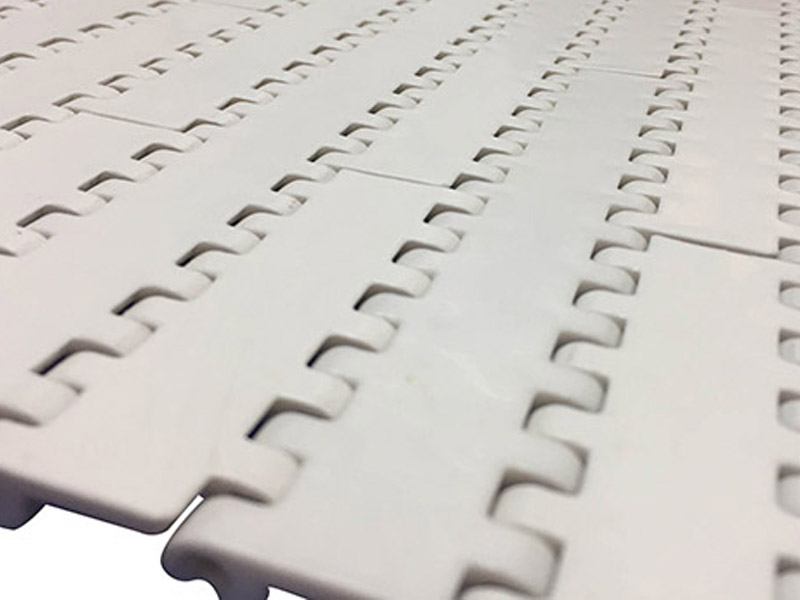

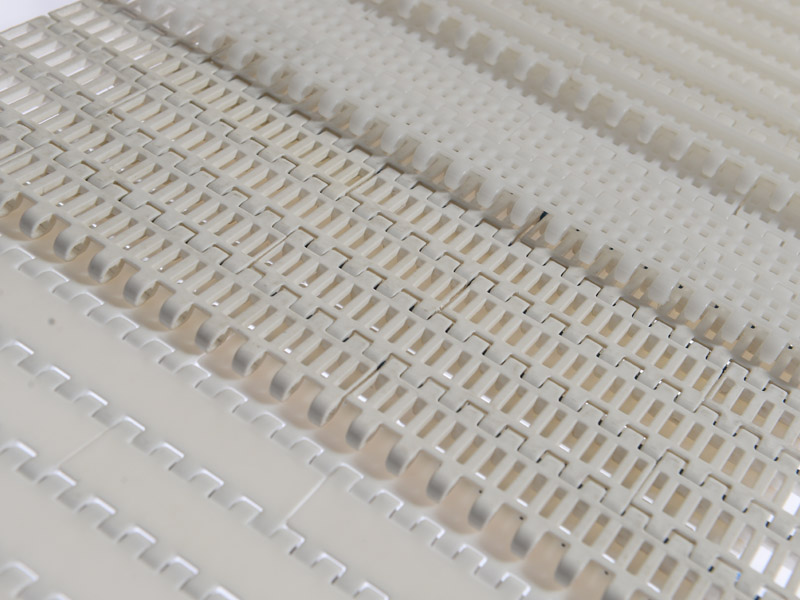

923 25,4mm FLAT TOP EASY-to-CLEAN MODULAR BELT
Free Shipping!!

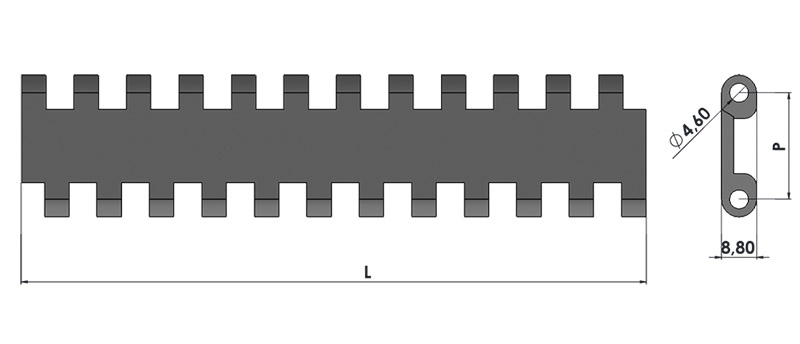

| Pitch | 25.4mm |
| Module Thickness | 8,8mm |
| Open Surface Ratio (%) | Flat Top |
| The Width of the Module | 152,4 mm |
| Widthness | 25 mm |
| Colour | White/Blue |
| Cleanability | Perfect (FDA Food Grade) |
| Pin Diameter | 4,6 mm |
| Major Diameter | Up to Sprocket Size |
|
|
| Polypropylene (PP) | +1 | +110 |
| Polyacetal (POM) | -40 | +90 |
| Polyethylene (PE) | -60 | +100 |
| Stock Code | P | Color | L | Material | PIN | Chain Strength (N/m) | Kg / m2 |  |
|---|---|---|---|---|---|---|---|---|
| 923 B01 K01 | 25,4 | White (B) | 152,4 | Polypropylene | PP | 21160 | 3,100 | m |
| 923 B02 K01 | 25,4 | White (B) | 152,4 | Polyacetal | PA | 20400 | 4,120 | m |
| 923 M01 K01 | 25,4 | Blue (M) | 152,4 | Polypropylene | PP | 35200 | 3,100 | m |
| 923 M02 K01 | 25,4 | Blue (M) | 152,4 | Polyacetal | PA | 34100 | 4,120 | m |
