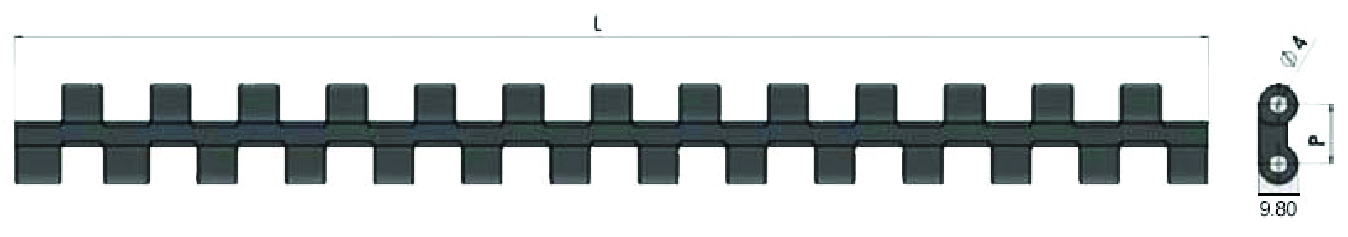

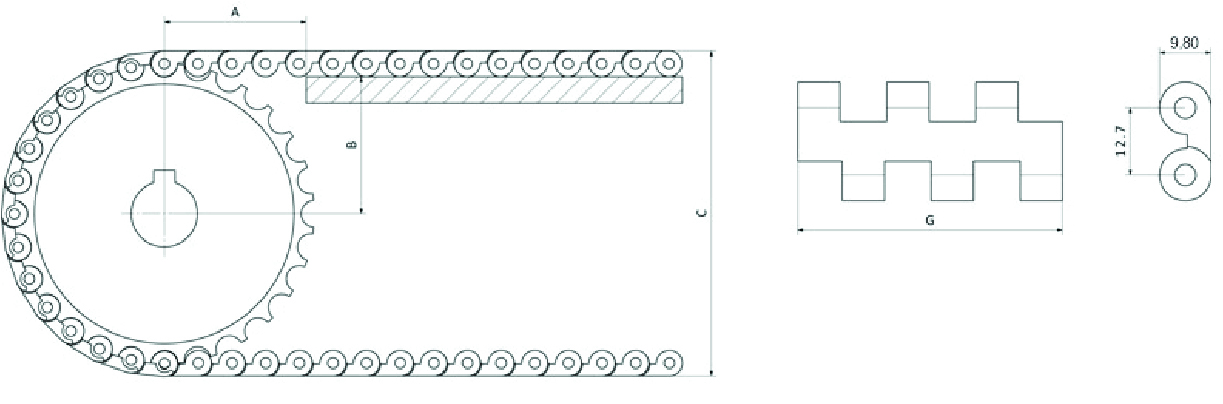

| Pitch |
12.7 mm |
| Width Thickness |
9,80 mm |
| Open Surface Ratio (%) |
Flat Top (%0) |
| The width of the Modules |
254,4mm / 100mm / 50mm |
| Widthness |
16-17 mm |
| Colour |
White/Blue/Gray |
| Cleanability |
Average (FDA Foor Grade) |
| Pin Diameter |
4mm |
| Polypropylene (PP) |
+1 |
+110 |
| Polyacetal (POM) |
-40 |
+90 |
| Polyethylene (PE) |
-60 |
+100 |
| Stock Code |
P |
RM |
Material |
.png)  |
PIN |
Chain Strength (N/m) |
Kg / m2 |
 |
| 946 M01 K01 |
12,7 |
_ |
PP Polypropylene |
254,4 |
PP |
10000 |
4,5 |
m |
| 946 M02 K01 |
12,7 |
_ |
POM Polyacetal |
254,4 |
PA |
15000 |
8,5 |
m |
