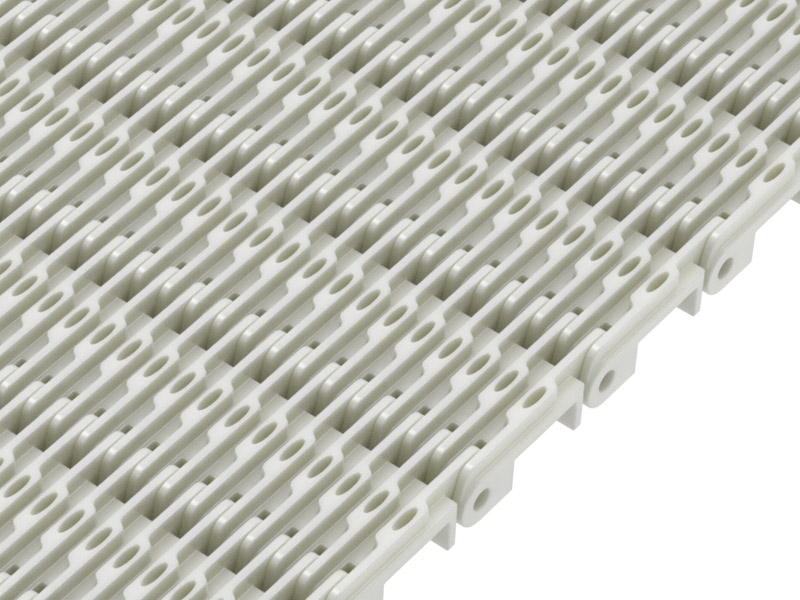

960 RAISED RIB BELT
Free Shipping!!

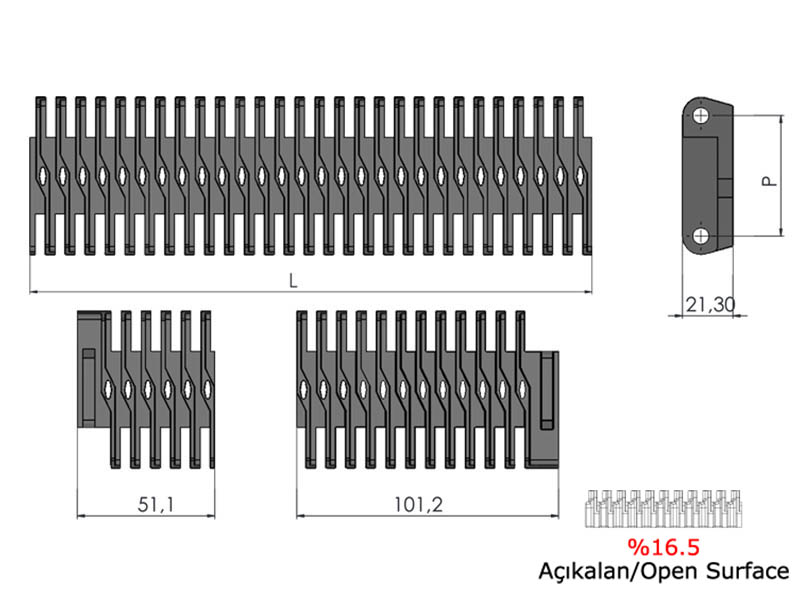

| Pitch | 50.8 mm |
| Thickness | 22,31 mm |
| Open Surface Ratio (%) | Open Surface (16,5%) |
| Width | 301 mm (bandwidth below) |
| Widthness | 18-19 mm |

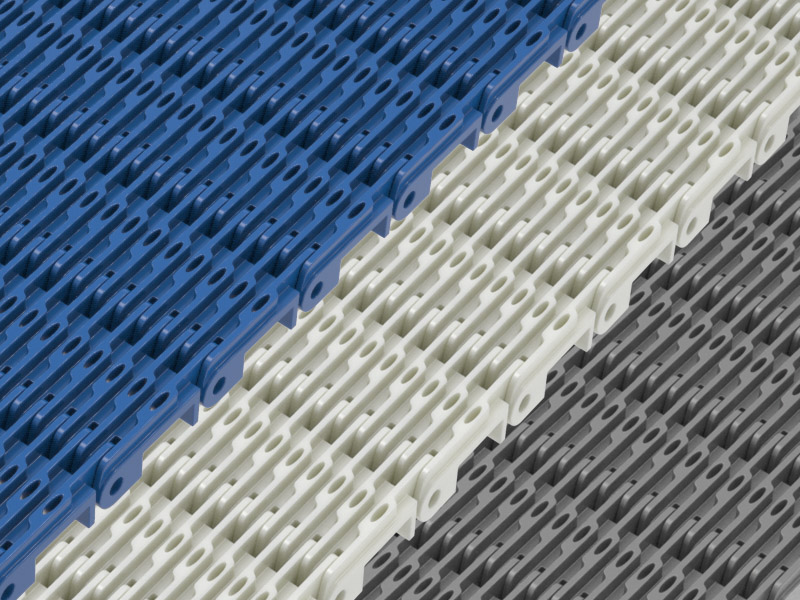

| Colour | White/Blue/Gray |
| Cleanability | Average (FDA Food Grade) |
| Pin Diameter | 6 mm |
| Major Diameter | Up to the sprocket size |
|
|
| Stock Code | P | Color | L | Material | PIN | Chain Strength (N/m) | Kg / m2 |  |
|---|---|---|---|---|---|---|---|---|
| 960 B01 K01 | 50,8 | White (B) | 254,2 | Polypropylene | PP | 29500 | 10,400 | m |
| 960 B02 K01 | 50,8 | White (B) | 254,2 | Polyacetal | PA | 26500 | 15,120 | m |
| 960 G01 K01 | 50,8 | Gray (G) | 254,2 | Polypropylene | PP | 39950 | 10,400 | m |
| 960 G02 K01 | 50,8 | Gray (G) | 254,2 | Polyacetal | PA | 36500 | 15,120 | m |
The industrial areas of the usage of 50,8mm modular belt;
- Food Industry

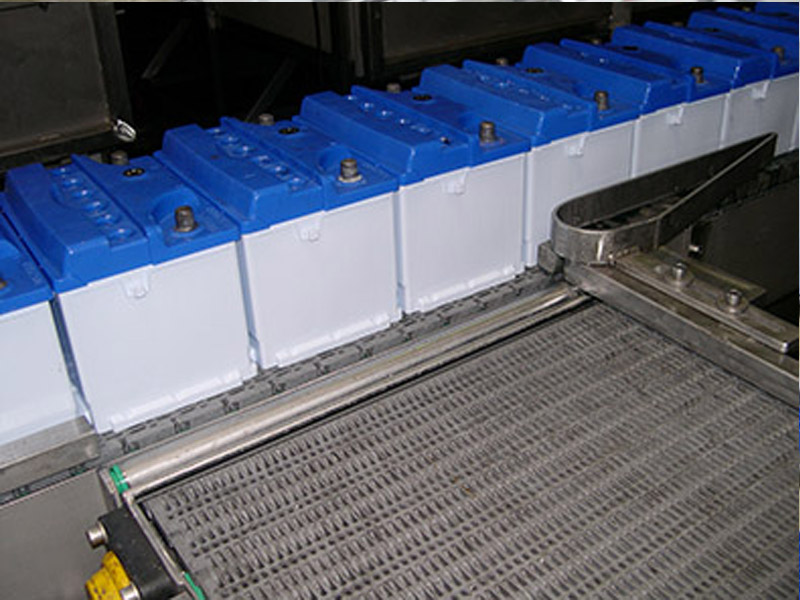

- Automative Industry
- Meat Industry
- Pharmaceutical Industry
- Becerage Industry
- Fruit and Vegetable Sector
- Canned Food Industry
- Sea Products
- Confectionary Industry
- PacKaging Industry
- Corrugated Cardboard Sector
- Bakery Products
| Polypropylene (PP) | +1 | +110 |
| Polyacetal (POM) | -40 | +90 |
| Polyethylene (PE) | -60 | +100 |
