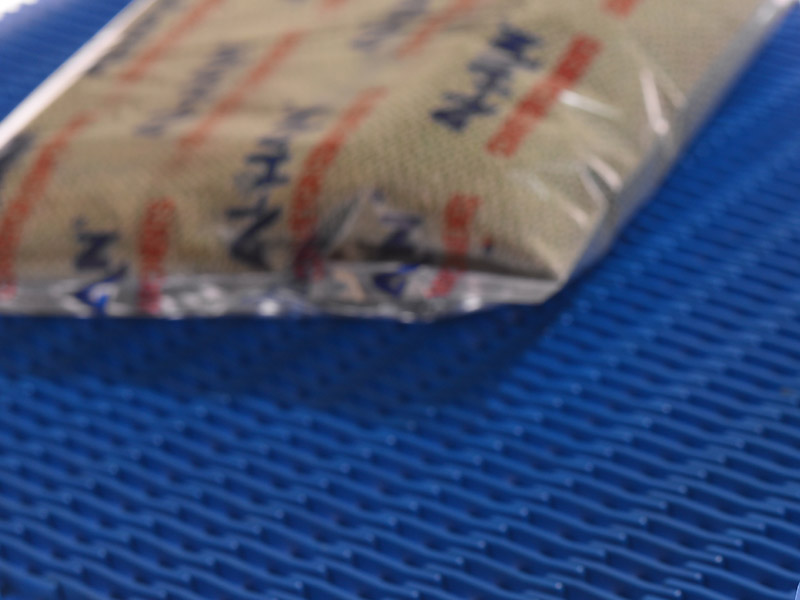

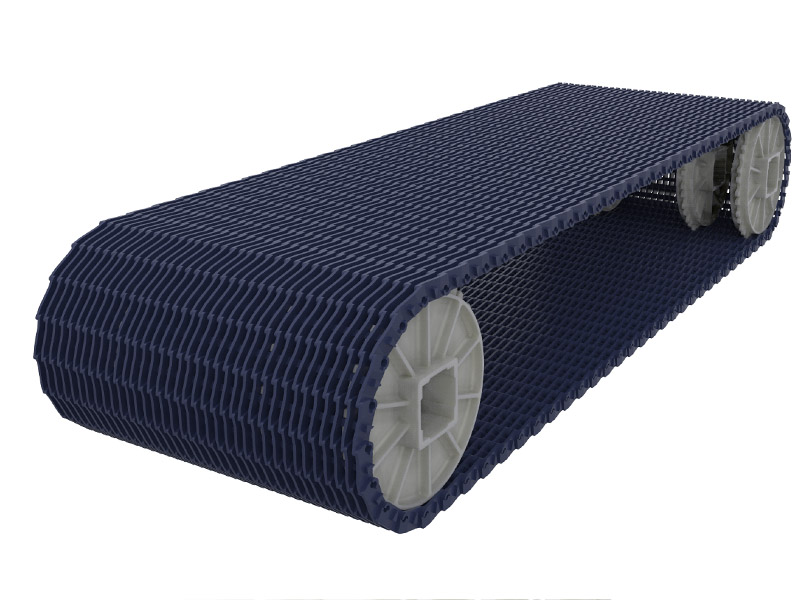

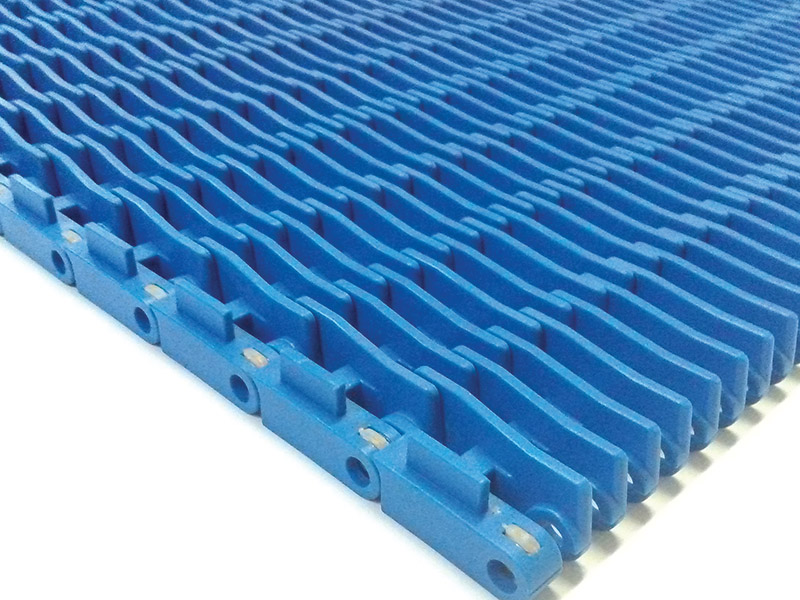

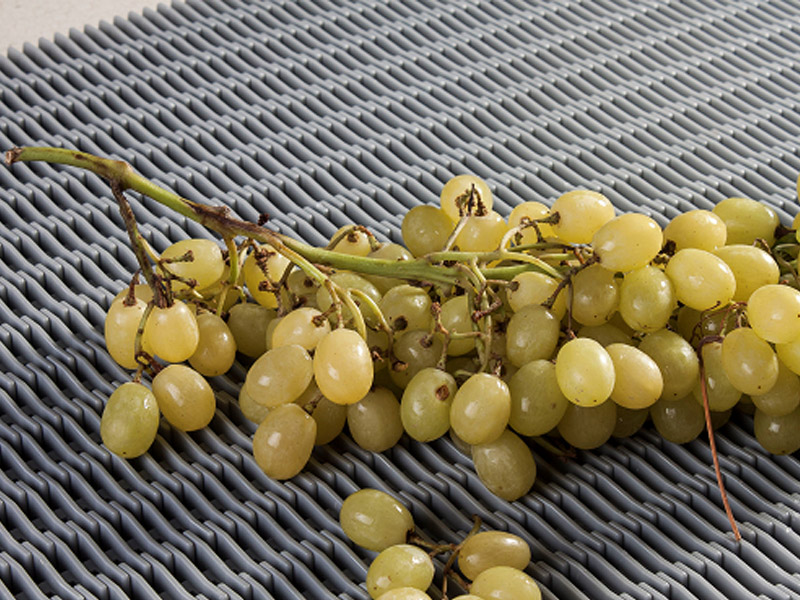

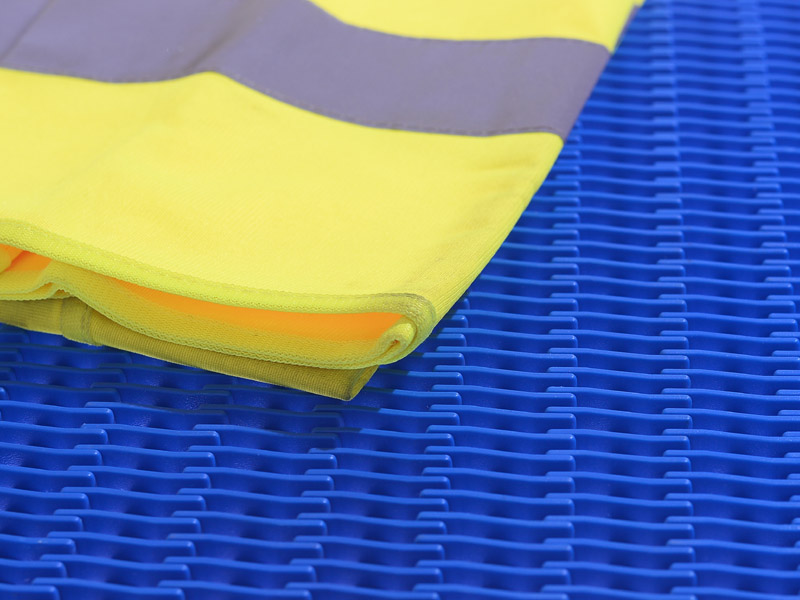

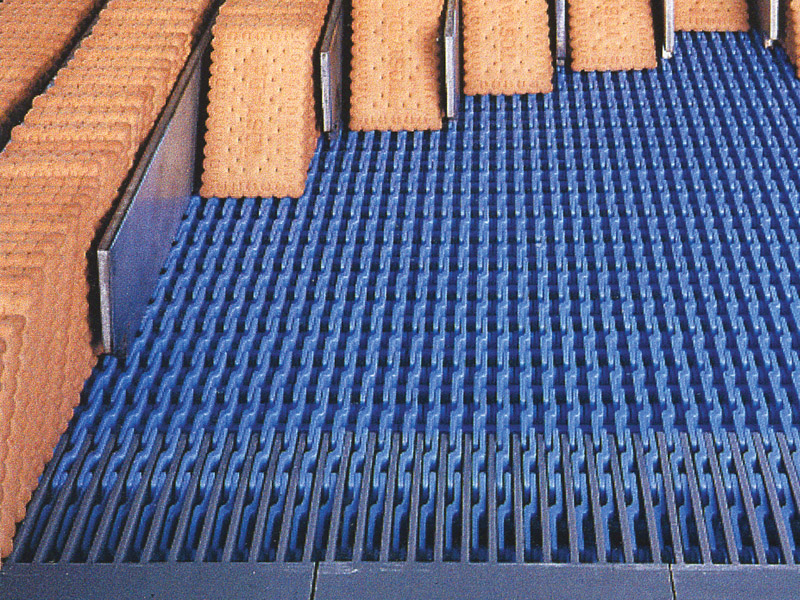

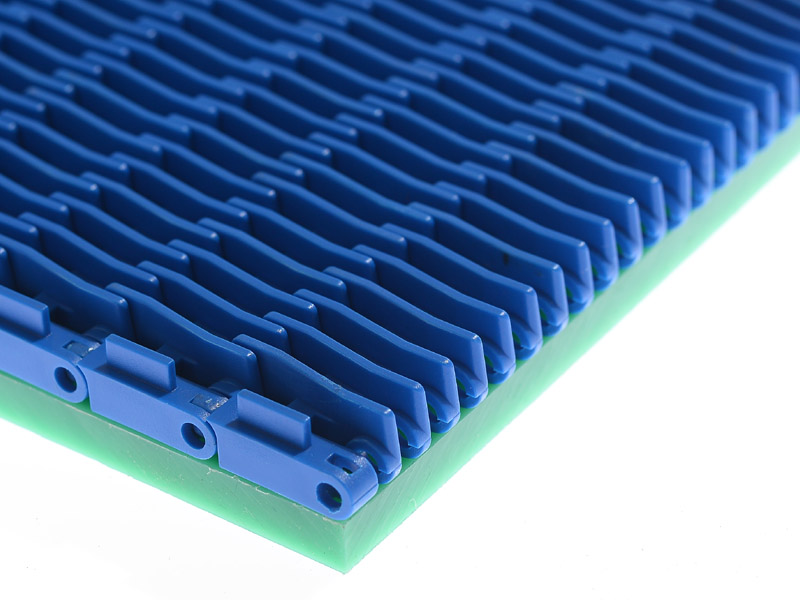

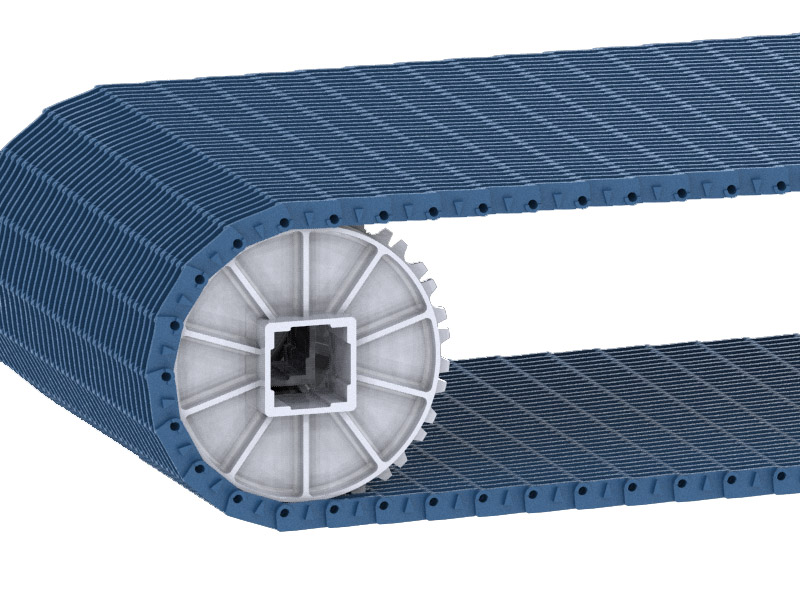

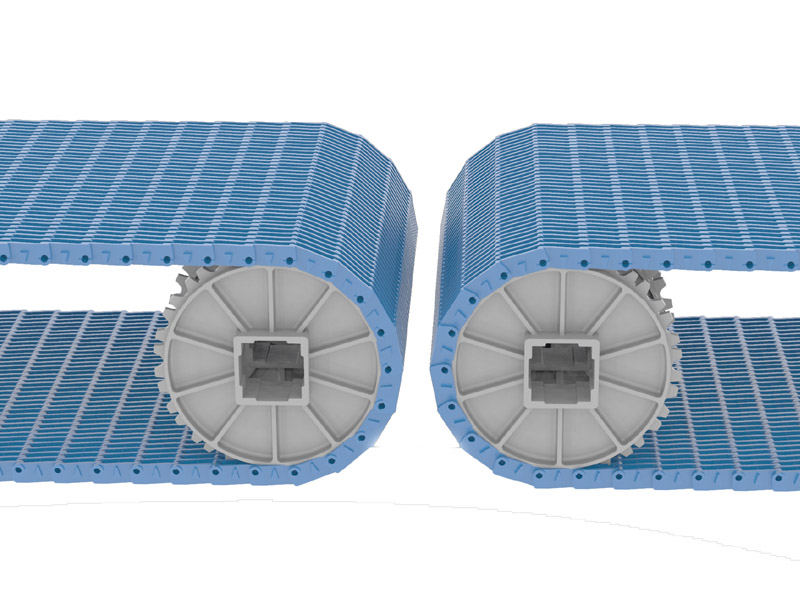

961 27,2mm RAISED OPEN GRID MODULAR BELT
Free Shipping!!
| Pitch | 27.2mm |
| Thickness of the Belt | 14,5mm |
| Open Surface Ratio | Open Surface 38% |
| Width of the Module | 50-100-150 mm |
| Widthness | 9 mm |
| Colour | White/Blue/Gray |
| Cleanability | Perfect (FDA Food Grade) |
| Pin Diameter | 4,6 mm |

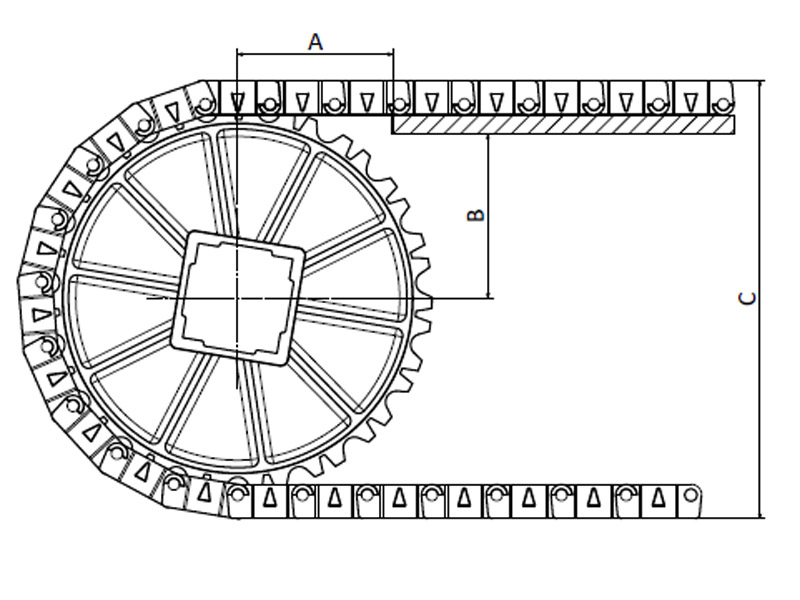

| Major Diameter | Up to the sprocket dimensions |
| Transfer Comb | 850 Model |
|
|
| Polypropylene (PP) | +1 | +110 |
| Polyacetal (POM) | -40 | +90 |
| Polyethylene (PE) | -60 | +100 |
| Stock Code | P | Material | Open Area | Belt Strength N/m | Kg / m2 |
|---|---|---|---|---|---|
| 961 M01 K01 | 27,2 | Polypropylene | %38 | 18.000 | 5,20 |
| 961 M02 K01 | 27,2 | Polyacetal | %38 | 20.000 | 6,20 |
