965, 27.2mm OPEN GRID MODULAR BELT
Free Shipping!!

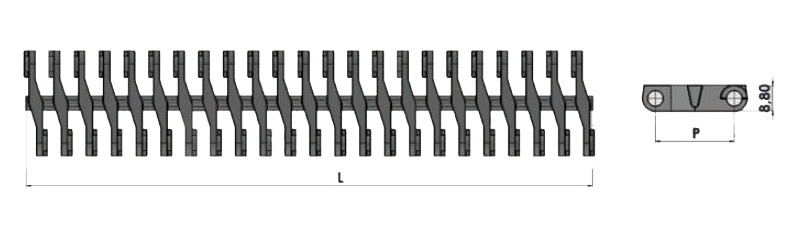

| Pitch | 27.2 mm |
| Thickness | 8,38 mm |
| Open Surface Ratio (%) | Open Surface (%38) |
| Width of the Belt | 50-100-150 mm |
| Widthness | 9 mm |
| Colour | White/Blue/Gray |
| Cleanability | Perfect (FDA Food Grade) |
| Pin Diameter | 4,6 mm |
| Major Radius | Up to the sprocket model |
| Transfer Comb | Model 850 |
|
|
| Polypropylene (PP) | +1 | +110 |
| Polyacetal (POM) | -40 | +90 |
| Polyethylene (PE) | -60 | +100 |
| Stock Code | P | Material | Open Area | Belt Strength N/m | PIN | Kg / m2 |
|---|---|---|---|---|---|---|
| 965 B01 K01 | 27,2 | Polypropylene | %38 | 18.000 | PP | 3,70 |
| 965 B02 K01 | 27,2 | Polyacetal | %38 | 20.000 | PA | 5,60 |

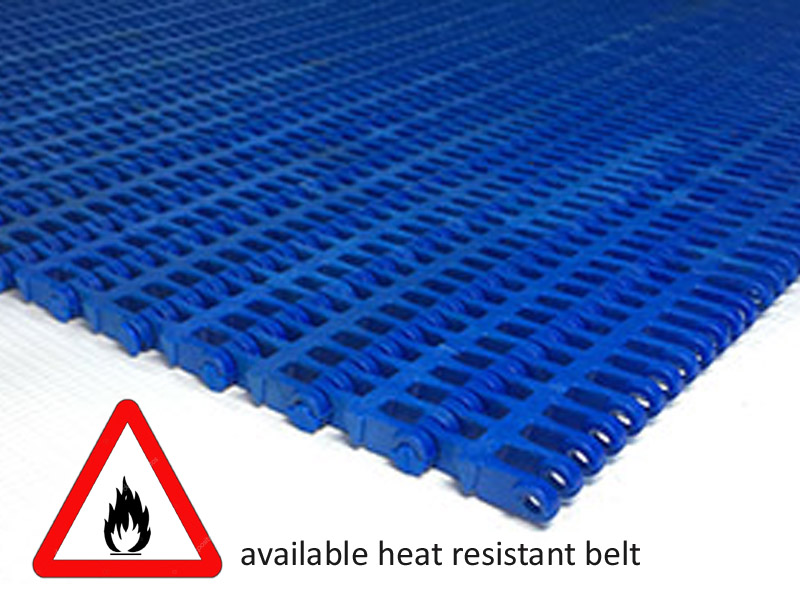

| 965 SS4 K26 | 27,2 | Heat Resistant Belt | %38 | 21.640 | SS | 10500 |
