FBL MODEL BEARING HOUSE
Discount Table
| Pieces | Discount |
|---|---|
| 11 Pcs - 20 Pcs | % 5 |
| 21 Pcs - and over | % 10 |
Free Shipping!!

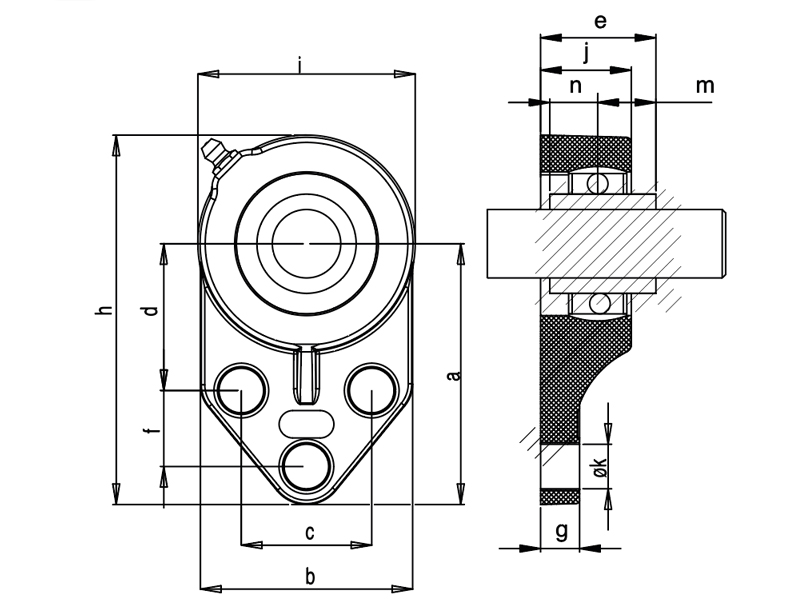

| Material | Dimensions (mm) | Bolt D. (mm) |
KG |  |
Stock Code (with Bearing) | KG | |
Stock Code (without Bearing) | Stock Code (Bearing House with Stainless Steel Bearing) | Bearing Load Ratings |  |
||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Ø EJE | a | b | c | d | e | f | g | h | i | j | k | m | n | dyn (N) | st (N) | ||||||||||
| PA | Ø 20 | 76,2 | 62 | 38 | 42,9 | 33,7 | 22,2 | 11 | 108 | 62 | 24,5 | 11 | 18,3 | 12,7 | M10 | 0.250 | + | 245 FBL 204 | 0.095 | - | 246 FBL 204 | 247 FBL 204 | 7800 | 5300 | 50 |
| PA | Ø 25 | 85,7 | 63,5 | 41,3 | 46 | 41,2 | 28,6 | 11,4 | 120,7 | 70 | 34 | 11 | 19,7 | 14,3 | M10 | 0.300 | + | 245 FBL 205 | 0.105 | - | 246 FBL 205 | 247 FBL 205 | 8600 | 6250 | 40 |
