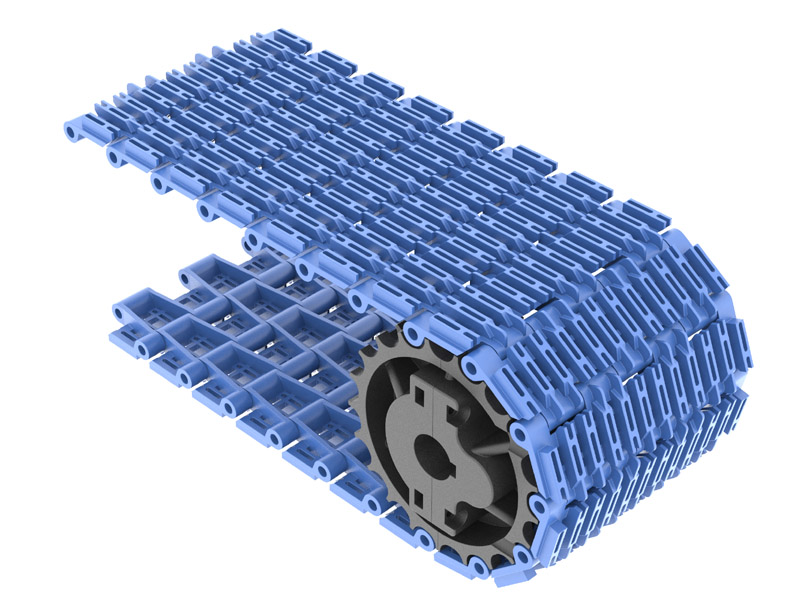

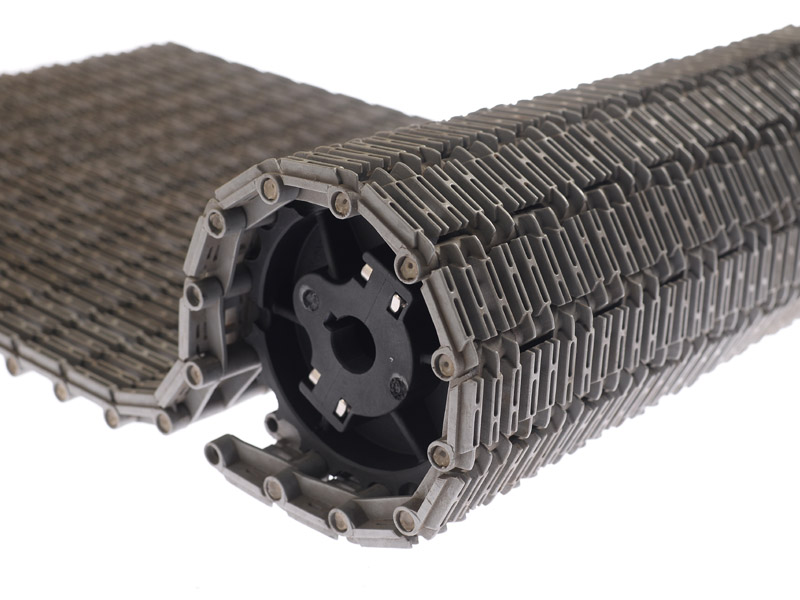

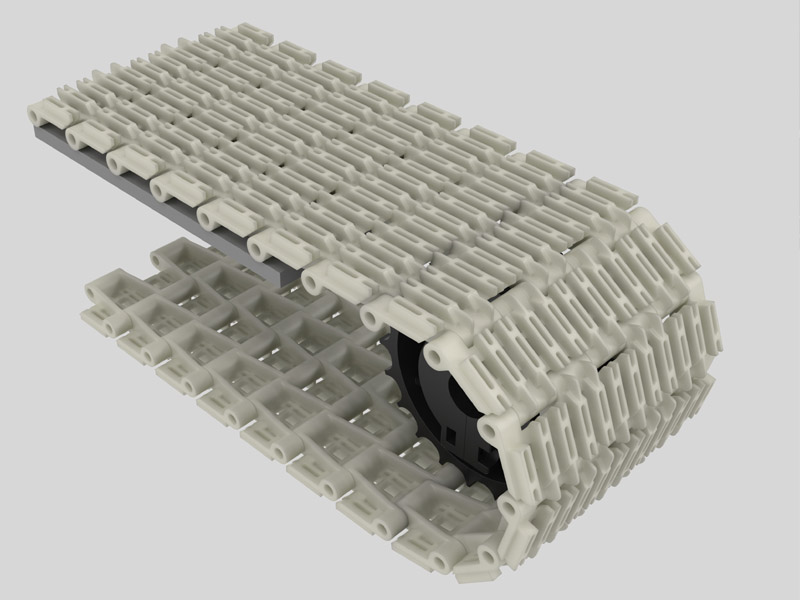

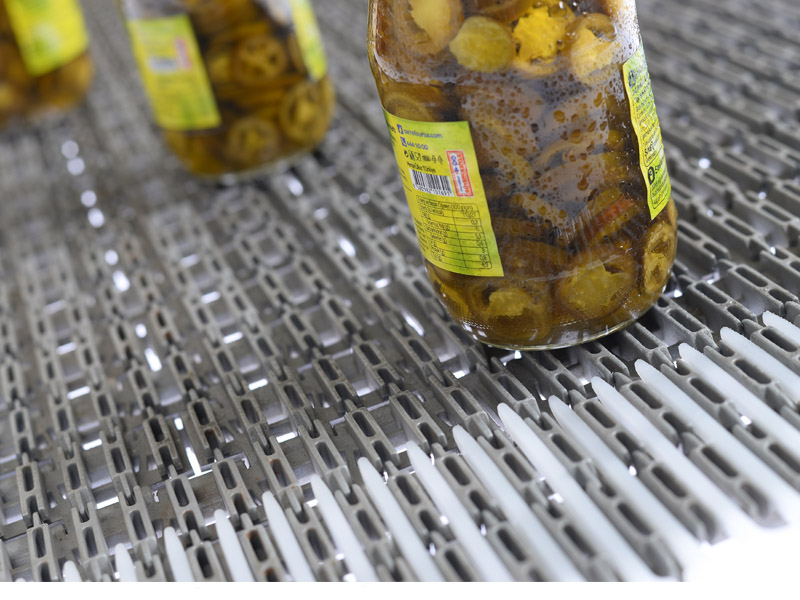

831 RAISED RIB BELT

Size

Free Shipping!!

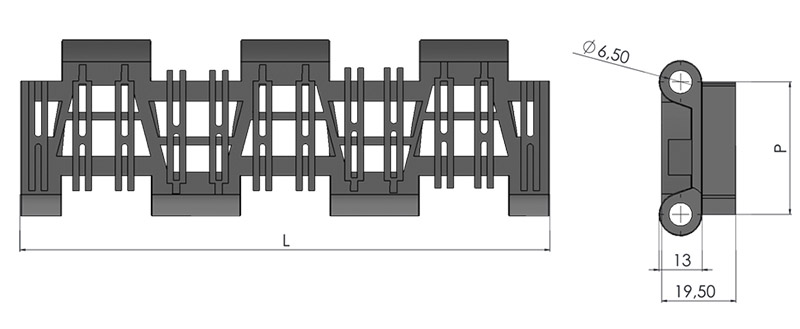

Pitch 38.1 mm
Thickness  19,50 mm
Open Surface Ratio (%) Open Surface 23%
Width 51 - 102 - 153 mm
Widthness 51 - 52 mm
Colour White/Gray/Blue
Cleanability Perfect (FDA Food Grade)
Pin Diameter  6 mm

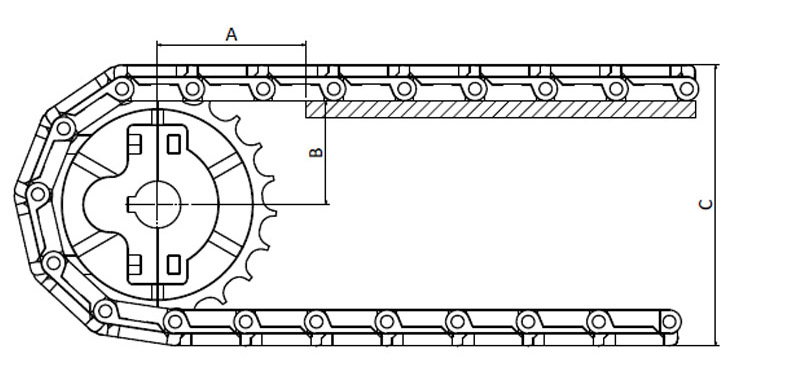

Major Diameter Up to the sprocket dimensions
Cleat Available Height: 50 - 70mm
Side Space Application Available (Just for certain Dimensions)



















ALHAN® belts with smooth linear surface have a locking system that can be easily changed in case of damage to the (modular) mesh tape in the dimensions you want. It is compatible with various industries – 46 +110 (It can be applied with different materials for places that require special working conditions.) When you prefer long conveyor lines, our ALHAN 38,1 mm pitch (1,5 inch) mesh belts are preferred in the following situations. It does not require much supervision due to its high strength properties. ALHAN (modular) Wire Mesh Belt for healthy transportation is long-lasting, requires less maintenance and saves energy. ALHAN (modular) Knitted belts have less initial investment and are an innovative product.

Polyacetal (POM) Plastic (modular) mesh belts are the solution for frozen products – they can work at 46 +70 degrees.

Polypropylene (PP) Plastic (modular) mesh tapes are more resistant to acidic basic and salty environments at +1 + 110 degrees.

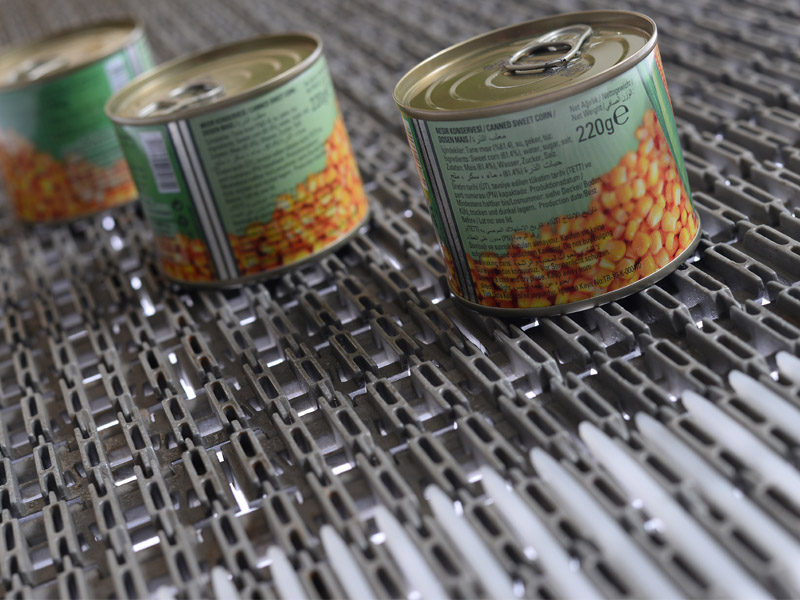

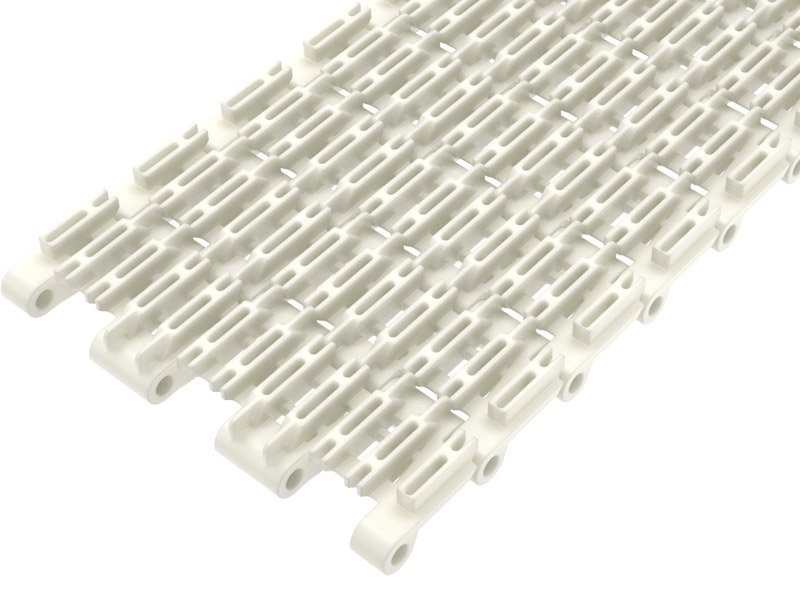

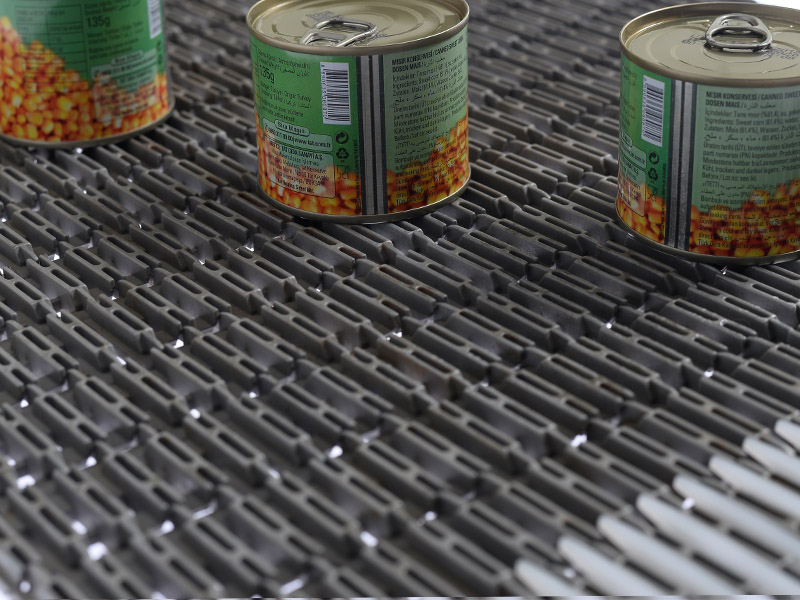

Model 831 (modular) raised rib belt surface is flat and smooth, and is suitable for the food industry with its clean structure. It has FDA food grade document approval.

The industrial areas of the usage of 25,4mm flat top modular belt;



Stock Code P Color L Material  PIN Kg / m2
831 G01 K01 38,1 Gray (G) 152,4 Polypropylene PP 4,270 m
831 G02 K01 38,1 Gray (G) 152,4 Polyacetal PA 6,690 m
831 M01 K01 38,1 Blue (M) 152,4 Polypropylene PP 4,270 m
831 M02 K01 38,1 Blue (M) 152,4 Polyacetal  PA 6,690 m





Polypropylene (PP) +1 +110
Polyacetal (POM) -40 +90
Polyethylene (PE) -60 +100
