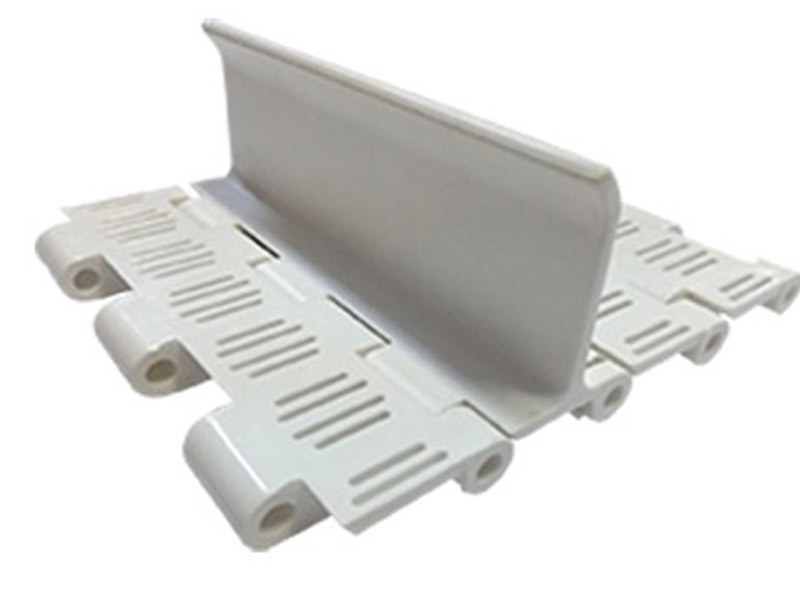

855 CLEAT BELT
Free Shipping!!
| Pitch | 38.1 mm |
| Thickness | 13 mm |
| Open Surface Ratio (%) | Open Surface 0% |
| Width | 51 - 102 - 153 mm |
| Widthness | 51 - 52 mm |
| Colour | White/Gray/Blue |
| Cleanability | Average (FDA Food Grade) |
| Pin Diameter | 6 mm |
| Major Diameter | Up to the sprocket dimensions |
| Cleat | Available Height: 50 - 70 mm |
| Side Space Application | Available (Just for certain Dimensions) |
|
|
ALHAN® belts with smooth linear surface have a locking system that can be easily changed in case of damage to the (modular) mesh tape in the dimensions you want. It is compatible with various industries – 46 +110 (It can be applied with different materials for places that require special working conditions.) When you prefer long conveyor lines, our ALHAN 25,4 mm pitch (1 inch) mesh belts are preferred in the following situations. It does not require much supervision due to its high strength properties. ALHAN (modular) Wire Mesh Belt for healthy transportation is long-lasting, requires less maintenance and saves energy. ALHAN (modular) Knitted belts have less initial investment and are an innovative product.
Polyacetal (POM) Plastic (modular) mesh belts are the solution for frozen products – they can work at 46 +70 degrees.
Polypropylene (PP) Plastic (modular) mesh tapes are more resistant to acidic basic and salty environments at +1 + 110 degrees.
Model 855 (modular) belt surface is flat and smooth, and is suitable for the food industry with its clean structure. It has FDA food grade document approval.
The industrial areas of the usage of 38,1mm flat top modular belt;
- Food Industry
- Automative Industry
- Meat Industry
- Pharmaceutical Industry
- Becerage Industry
- Fruit and Vegetable Sector
- Canned Food Industry
- Sea Products
- Confectionary Industry
- PacKaging Industry
- Corrugated Cardboard Sector
- Bakery Products
| Polypropylene (PP) | +1 | +110 |
| Polyacetal (POM) | -40 | +90 |
| Polyethylene (PE) | -60 | +100 |

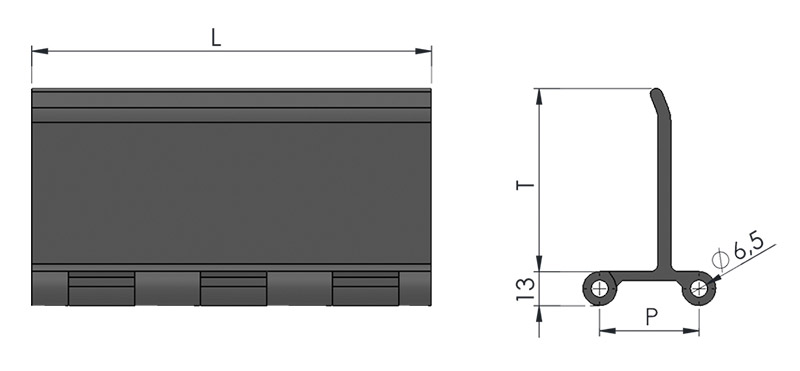

| Stock Code | P | Color | L | H | Material | PIN | Kg / m2 |  |
|
|---|---|---|---|---|---|---|---|---|---|
| 855 B01 K01 | 38,1 | White (B) | 152,4 | 50 | Polypropylene | PP | 11,04 | m | |
| 855 B01 K02 | 38,1 | White (B) | 152,4 | 70 | Polypropylene | PP | 13,77 | m | |
| 855 B02 K01 | 38,1 | White (B) | 152,4 | 50 | Polyacetal | PA | 13,44 | m | |
| 855 B02 K02 | 38,1 | White (B) | 152,4 | 70 | Polyacetal | PA | 16,17 | m | |
