Pitch	25.4 mm
Thickness	8,80 mm
Width	152,4 mm
Widthness	25 mm
Colour	White/Blue/Gray
Cleanability	Average (FDA Food Grade)
Pin Diameter	4,6 mm
Cleat	Available: Height: 25 - 50 - 75 - 100 mm
Side Indent Application	Available
Side Space Application	Just for certain Dimensions

Download the Catalogue

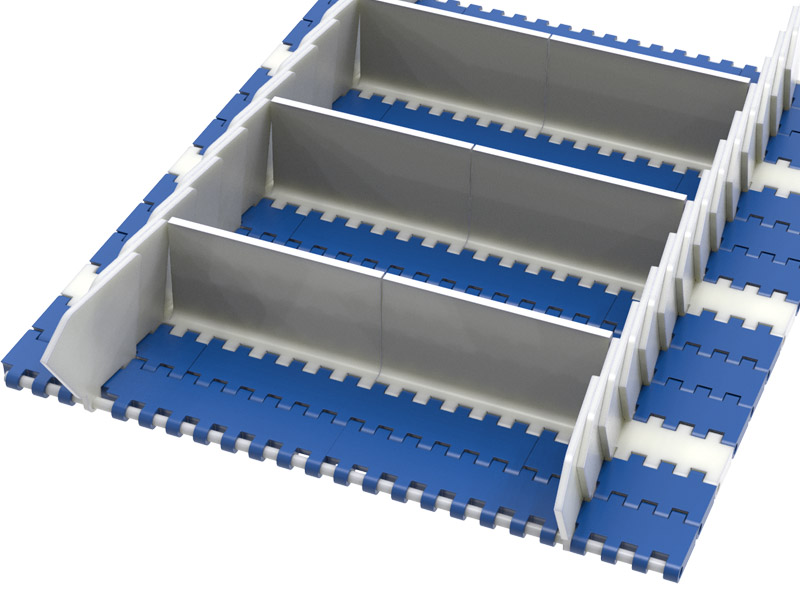

Model 939 (modular) cleat is flat and smooth, and is suitable for the food industry with its clean structure. It has FDA food grade document approval.

The industrial areas of the usage of 25,4mm modular belt with cleat;

• Food Industry
• Automative Industry
• Meat Industry
• Pharmaceutical Industry
• Becerage Industry
• Fruit and Vegetable Sector
• Canned Food Industry
• Sea Products
• Confectionary Industry
• PacKaging Industry
• Corrugated Cardboard Sector
• Bakery Products



Polypropylene (PP)	+1	+110
Polyacetal (POM)	-40	+90
Polyethylene (PE)	-60	+100



Stock Code	P	Color	L	Material	PIN	Chain Strength (N/m)	Kg / m2	H
939 B01 K01	25,4	White (B)	152,4	Polypropylene	PP	21160	5,650	25
939 B01 K02	25,4	White (B)	152,4	Polypropylene	PP	20400	5,850	50
939 B01 K03	25,4	White (B)	152,4	Polypropylene	PP	35200	6,050	75
939 B01 K04	25,4	White (B)	152,4	Polypropylene	PP	34100	6,250	100
939 B02 K01	25,4	White (B)	152,4	Polyacetal	PA	21160	7,500	25
939 B02 K02	25,4	White (B)	152,4	Polyacetal	PA	20400	7,700	50
939 B02 K03	25,4	White (B)	152,4	Polyacetal	PA	35200	7,900	75
939 B02 K04	25,4	White (B)	152,4	Polyacetal	PA	34100	8,100	100
