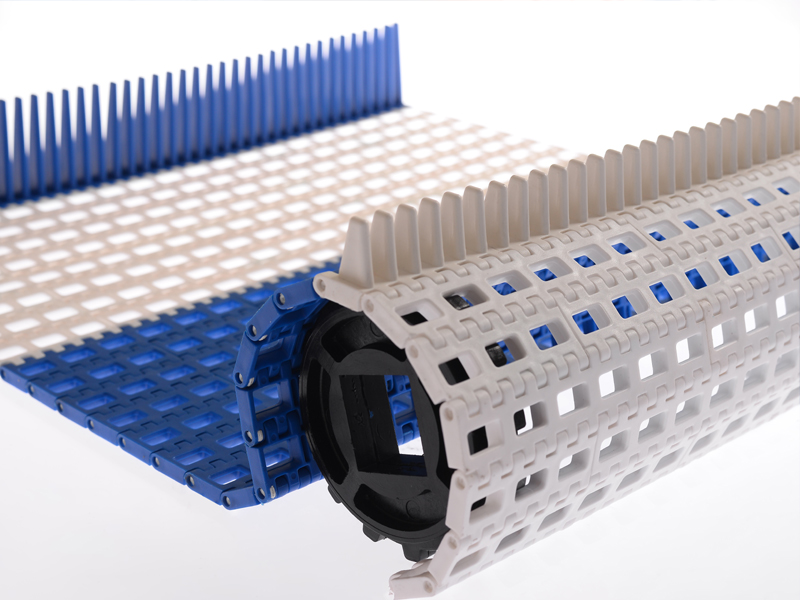

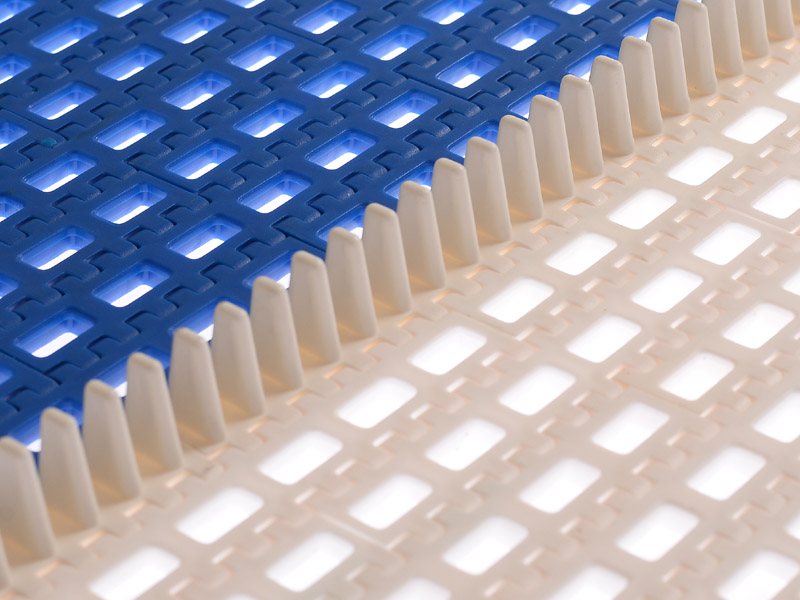

937 MODEL CLEAT
Free Shipping!!
| Pitch | 25.4m |
| Thickness | 8,80mm |
| Width | 152,4mm |
| Widthness | 25mm |
| Colour | White/Blue/Gray |
| Cleanability | Average (FDA Food Grade) |
| Pin Diameter | 4,6mm |

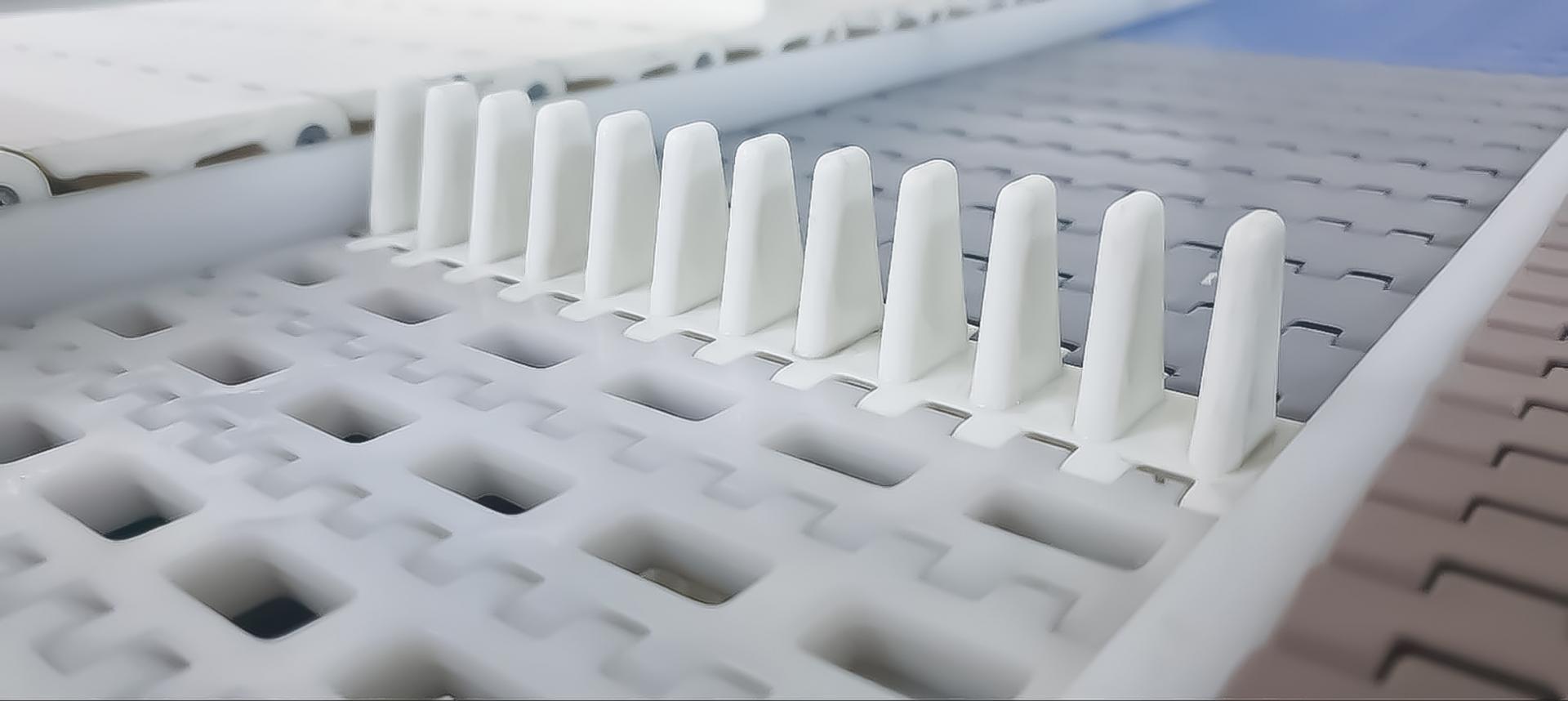

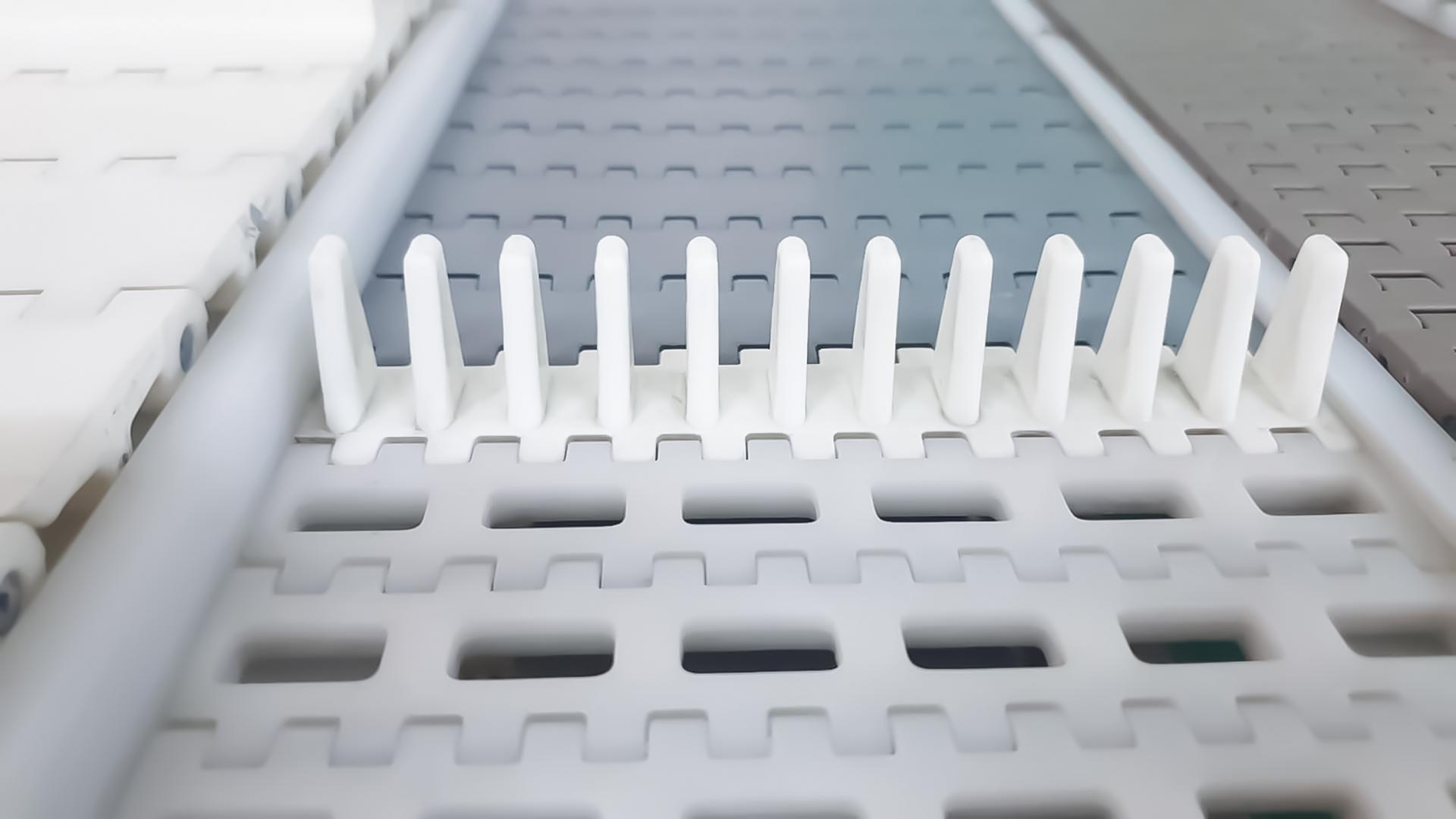

| Cleat | Available Height: 25 - 50 - 75 - 100mm |
| Side Indent Application | Available |
| Side Guard Application | Available Height: 50mm |
|
|
Related Products

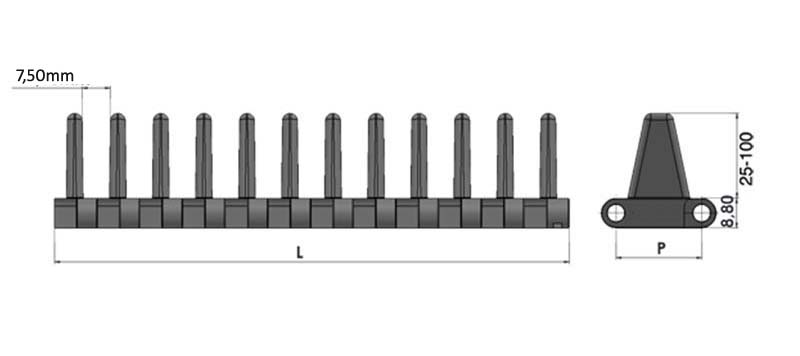

| The Height of the Cleat | The Distance Between the Nails (mm) |
|---|---|
| 25 | 8 |
| 75 | 7 |
Polyacetal (POM) Plastic (modular) mesh belts are the solution for frozen products – they can work at 46 +70 degrees.
Polypropylene (PP) Plastic (modular) mesh tapes are more resistant to acidic basic and salty environments at +1 + 110 degrees.

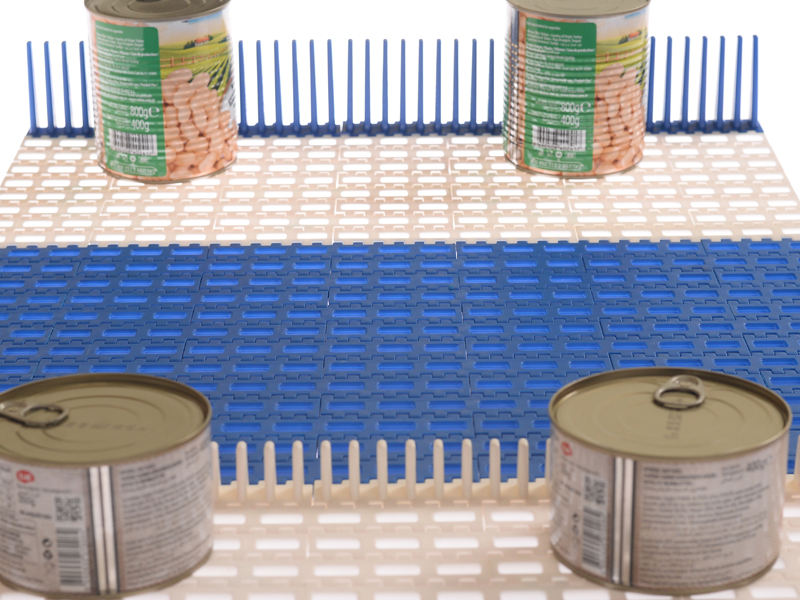

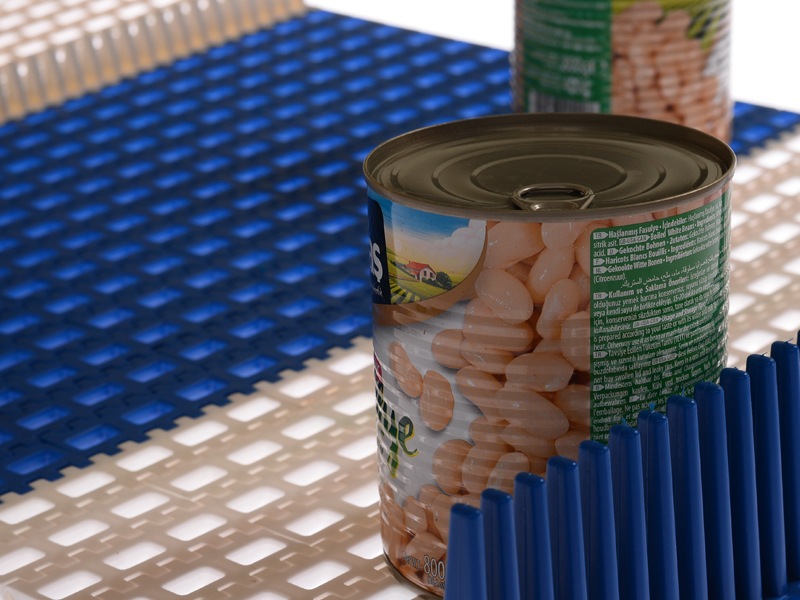

Model 937 (modular) open grid belt surface is flat and smooth, and is suitable for the food industry with its clean structure. It has FDA food grade document approval.
The industrial areas of the usage of 25,4mm modular belt;
- Food Industry
- Automative Industry
- Meat Industry
- Pharmaceutical Industry
- Becerage Industry
- Fruit and Vegetable Sector
- Canned Food Industry
- Sea Products
- Confectionary Industry
- PacKaging Industry
- Corrugated Cardboard Sector
- Bakery Products
| Polypropylene (PP) | +1 | +110 |
| Polyacetal (POM) | -40 | +90 |
| Polyethylene (PE) | -60 | +100 |
| Stock Code | P | Color | L | Material | PIN | Chain Strength (N/m) | Kg / m2 | H |
|---|---|---|---|---|---|---|---|---|
| 937 B01 K01 | 25,4 | White (B) | 152,4 | Polypropylene | PP | 21160 | 5,650 | 25 |
| 937 B01 K02 | 25,4 | White (B) | 152,4 | Polypropylene | PP | 20400 | 5,650 | 75 |
| 937 B02 K01 | 25,4 | White (B) | 152,4 | Polyacetal | PA | 35200 | 7,500 | 25 |
| 937 B02 K02 | 25,4 | White (B) | 152,4 | Polyacetal | PA | 34100 | 7,500 | 75 |
