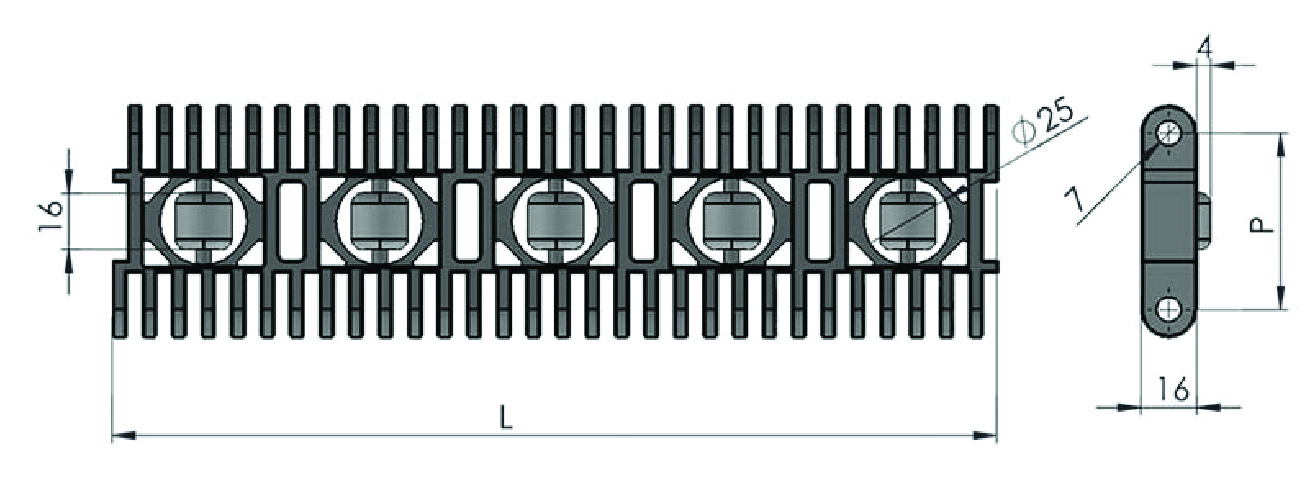

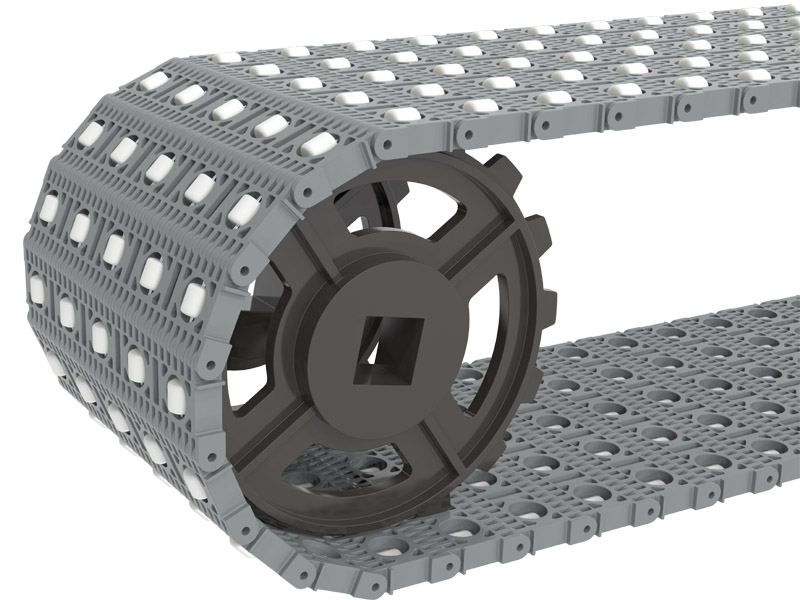

957 - 50,8mm TRANSFER ROLLER BELT
Free Shipping!!
| Pitch | 50.8 mm |
| Thickness | 16 mm |
| Open Surface Ratio (%) | Flat Top |
| Module Width | 254 mm |
| Widthness | 51 mm |
| Color | White/Blue/Gray |
| Cleanability | Average (FDA Food Grade) |
| Pin Diameter | 6 mm |
| Major Diameter | Up to the sprocket size |

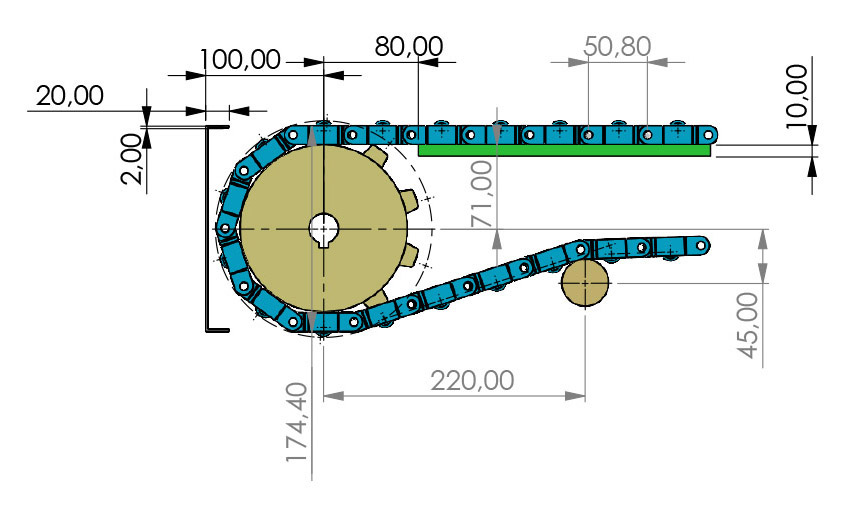

DEMONSTRATION of 50,8mm BELT and Z8 SPROCKET APPLICATION

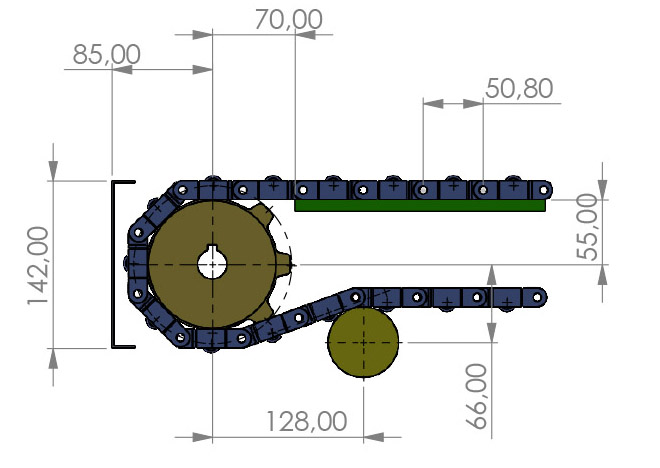

DEMONSTRATION of 50,8mm BELT and Z10 SPROCKET APPLICATION
| Stock Code | P | Color | Material | PIN | Chain Strength (N / m) | Kg / m | br |
|---|---|---|---|---|---|---|---|
| 957 B01 K01 | 50,8 | White (B) | Polypropylene | PP | 33.000 | 11.236 | m |
| 957 B02 K01 | 50,8 | White (B) | Polyacetal | PA | 33.000 | 11.236 | m |
| 957 G01 K01 | 50,8 | Gray (G) | Polypropylene | PP | 33.000 | 11.236 | m |
| 957 G02 K01 | 50,8 | Gray (G) | Polyacetal | PP | 33.000 | 11.236 | m |
| mm | |||||||||
|---|---|---|---|---|---|---|---|---|---|
| 153 | 462 | 771 | 1080 | 1389 | 1698 | 2007 | 2316 | 2625 | 2934 |
| 204 | 513 | 822 | 1131 | 1440 | 179 | 2058 | 2367 | 2676 | 2985 |
| 255 | 564 | 873 | 1182 | 1491 | 1800 | 2109 | 2418 | 2727 | 3036 |
| 306 | 615 | 924 | 1233 | 1542 | 1851 | 2160 | 2469 | 2778 | 3087 |
| 357 | 666 | 975 | 1284 | 1593 | 1902 | 2211 | 2520 | 2829 | 3138 |
| 408 | 717 | 1026 | 1335 | 1644 | 1953 | 2262 | 2571 | 2880 | ….. |
Fields of Usage:
- Food Industry
- Automative Industry
- Meat Industry
- Pharmaceutical Industry
- Becerage Industry
- Fruit and Vegetable Sector
- Canned Food Industry
- Sea Products
- Confectionary Industry
- PacKaging Industry
- Corrugated Cardboard Sector
- Bakery Products
| Polypropylene (PP) | +1 | +110 |
| Polyacetal (POM) | -40 | +90 |
| Polyethylene (PE) | -60 | +100 |
