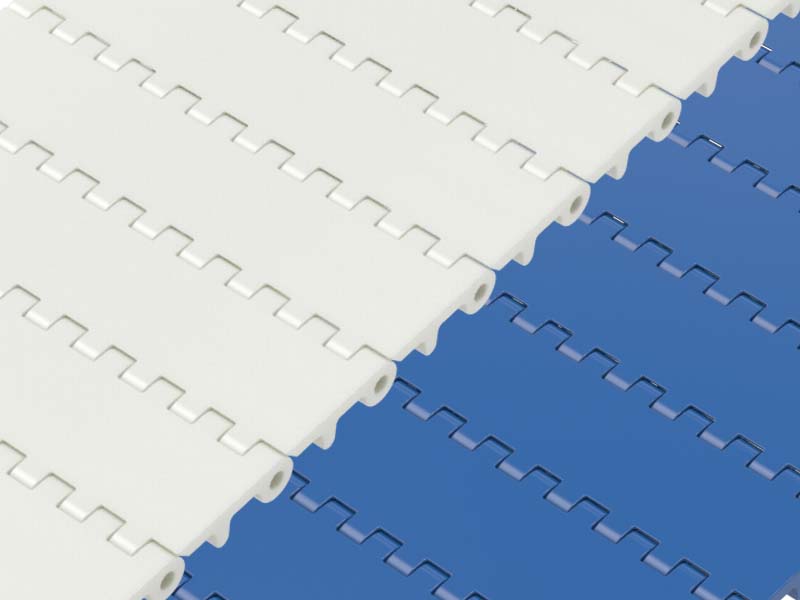

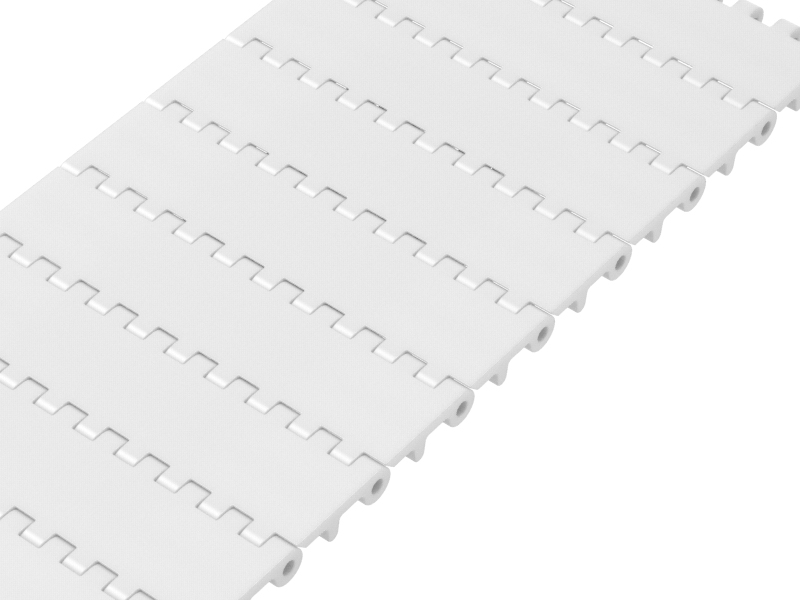

980 - 50,8mm FLAT TOP EASY-to-CLEAN BELT
Free Shipping!!

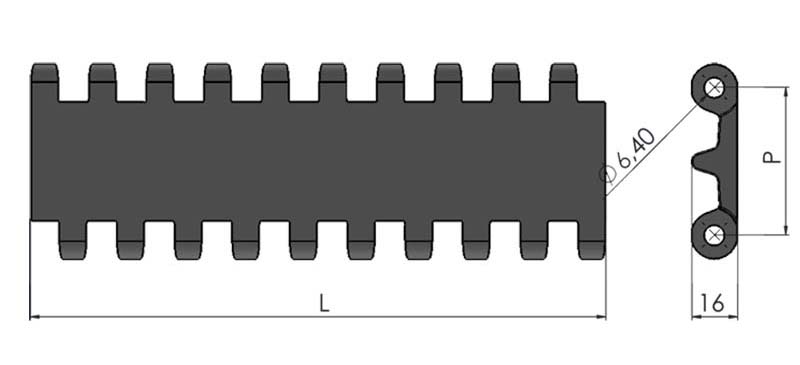

Pitch | 50.8 mm |
Thickness | 16 mm |
Open Surface Ratio (%) | Flat Top 0% |
Width | 200 mm |
Widthness | 20 mm |
Colour | White/Blue/Gray |
Cleanability | Perfect (FDA Food Grade) |
Pin Diameter | 6 mm |
Major Diameter | Up to the Sprocket Size |
Cleat Application | Available Height: 50 - 100 mevcut |
Side Indent Application | Available |
Side Guard Application | Available Height: 50 - 100 mm |
|
Stock Code | P | Color | Material | PIN | Chain Strength (N/m) | Kg / m | |||
---|---|---|---|---|---|---|---|---|---|
980 B01 K01 | 50,8 | White (B) | Polypropylene | PP | 21160 | 5,920 | m | ||
980 B02 K01 | 50,8 | White (B) | Polyacetal | PA | 20400 | 7,200 | m | ||
980 M01 K01 | 50,8 | Blue (M) | Polypropylene | PP | 35200 | 5,920 | m | ||
980 M02 K01 | 50,8 | Blue (M) | Polyacetal | PA | 34100 | 7,200 | m |
Polypropylene (PP) | +1 | +110 |
Polyacetal (POM) | -40 | +90 |
Polyethylene (PE) | -60 | +100 |
