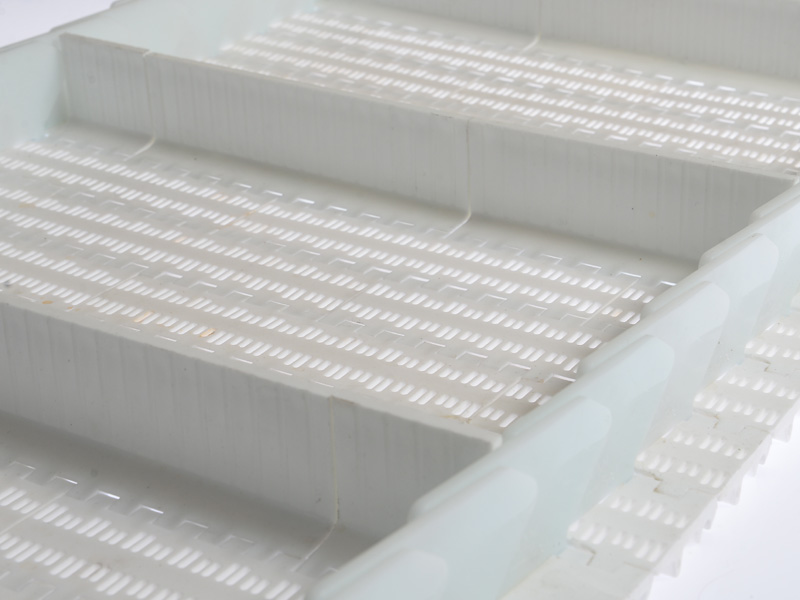

984 - CLEAT of 508mm EASY-to-CLEAN BELT
Free Shipping!!

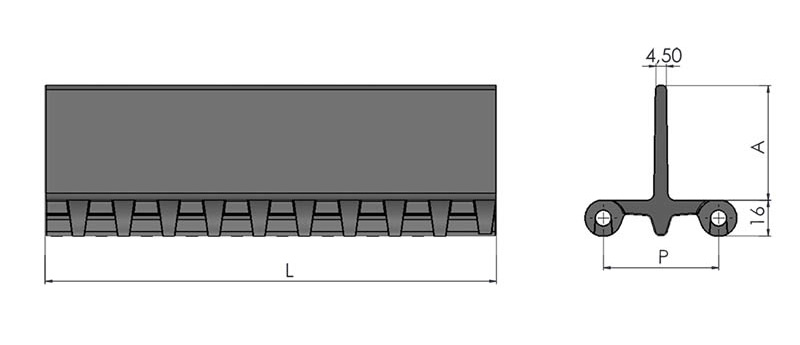

| Pitch | 50.8 mm |
| Thickness of the Cleat | 16 mm |
| Open Surface Ratio (%) | Flat Top 0% |
| Width of the Cleat | 200 mm |
| Widthness | 20 mm |
| Colour | White |
| Cleanability | Perfect (FDA Food Grade) |
| Pin Diameter | 6 mm |
| Major Diameter | Up to the sprocket dimensions |
| The Height of the Cleat | 50 - 100 mm |
| Side Indent Application | Available (special dimensions) |
|
Stock Code |
P | Color | L | Material | PIN | Chain Strength (N/m) | Kg / m2 | H |  |
|---|---|---|---|---|---|---|---|---|---|
| 984 B01 K01 | 50,8 | White (B) | 200 | Polypropylene | PP | 21160 | 0,125 | 50 | m |
| 984 B01 K02 | 50,8 | White (B) | 200 | Polypropylene | PP | 20400 | 0,125 | 100 | m |
| 984 B02 K01 | 50,8 | White (B) | 200 | Polyacetal | PA | 35200 | 0,800 | 50 | m |
| 984 B02 K02 | 50,8 | White (B) | 200 | Polyacetal | PA | 34100 | 0,800 | 100 | m |
| Polypropylene (PP) | +1 | +110 |
| Polyacetal (POM) | -40 | +90 |
| Polyethylene (PE) | -60 | +100 |

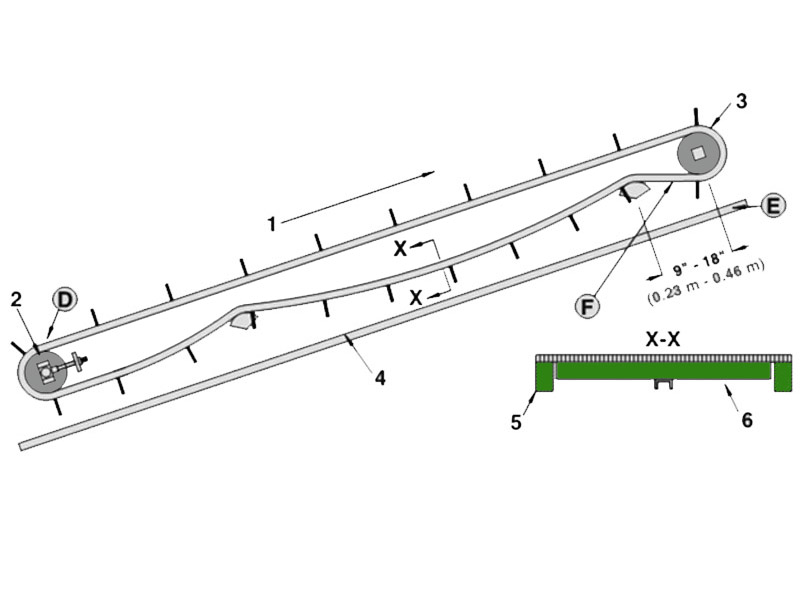

The industrial areas of the usage of 50.8mm modular belt with cleat;
