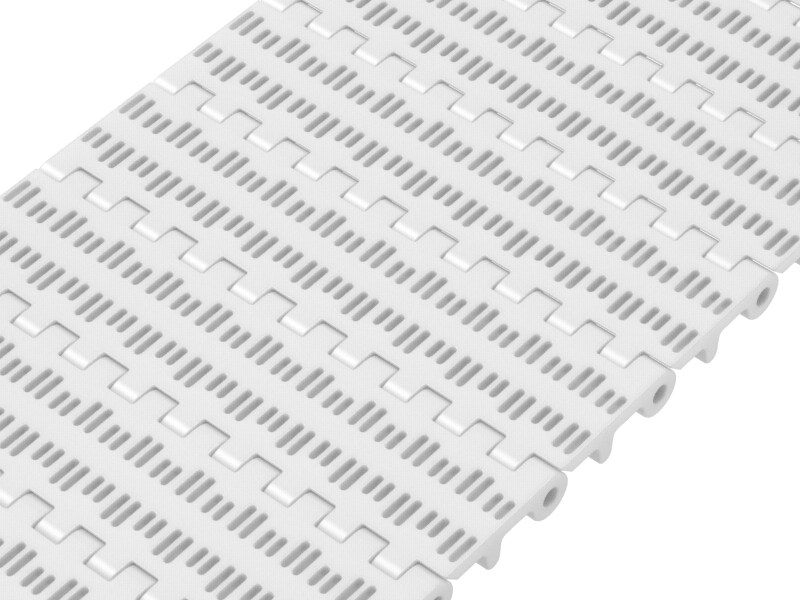

981 - 50,8mm FILTERED EASY-to-CLEAN BELT

Size

Free Shipping!!

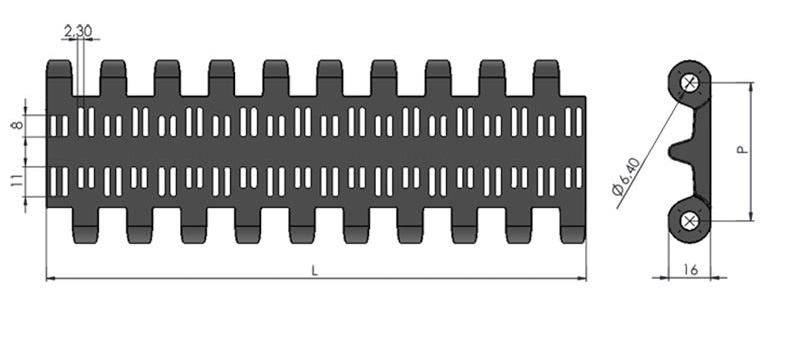

Pitch 50.8 mm
Thickness  16 mm
Open Surface Ratio (%) Closed Surface 26%
Width 200 mm
Widthness 20 mm
Colour White/Blue/Gray
Cleanability Perfect (FDA Food Grade)
Pin Diameter 6 mm

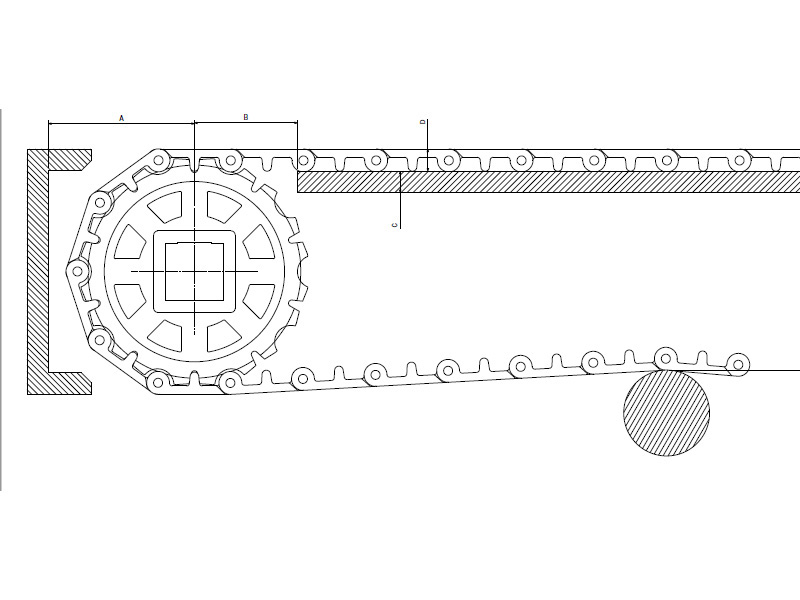

Major Diameter Up to sprocket dimensions

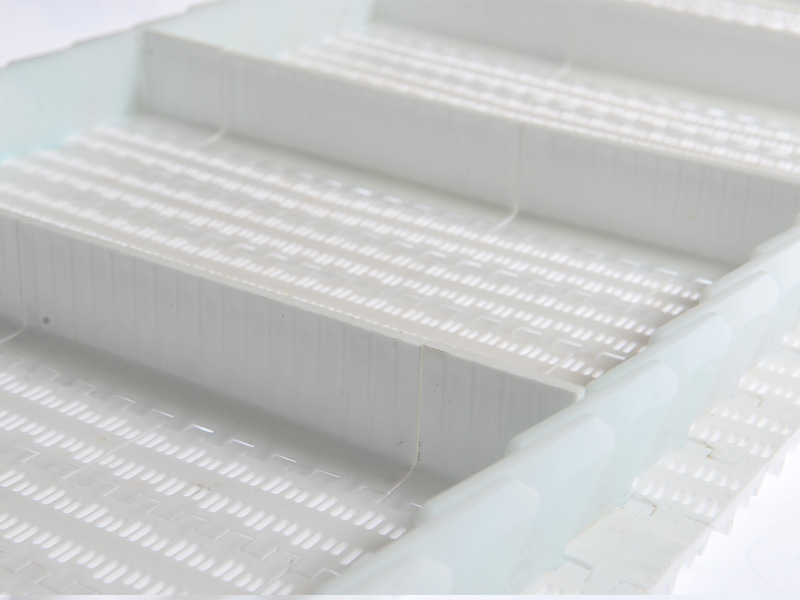

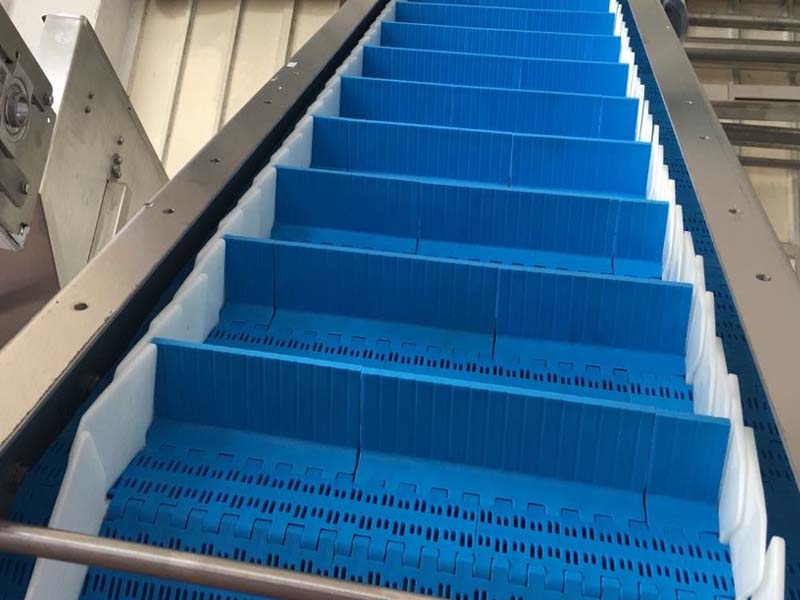

Cleat Available Height: 50 - 100mm
Side Indent Application  Available

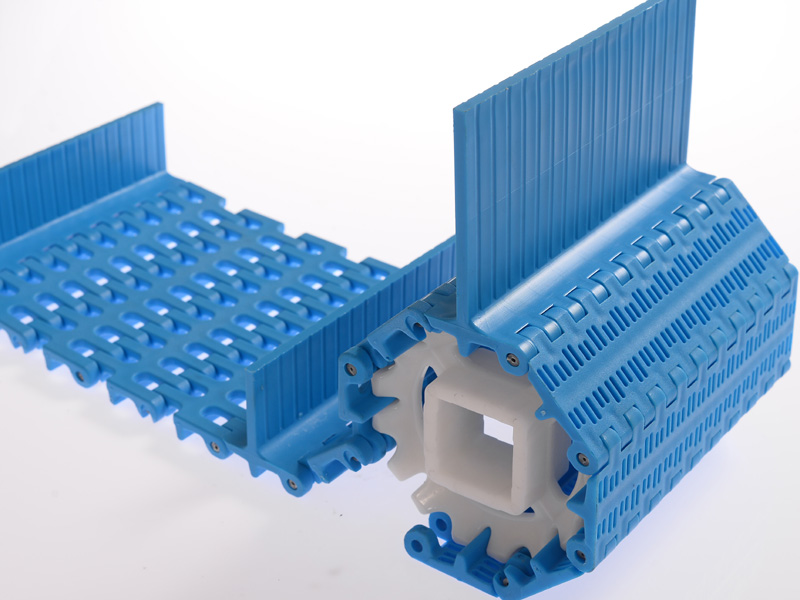

Side Guard Application Available Height: 50 - 100mm





Stock Code P  Color L Material  PIN Chain Strength (N/m) Kg / m2
981 B01 K01 50,8 White (B) 200 Polypropylene PP 21160 5,990 m
981 B02 K01 50,8 White (B) 200 Polyacetal PA 20400 7,340 m
981 M01 K01 50,8 Blue (M) 200 Polypropylene PP 35200 5,990 m
981 M02 K01 50,8 Blue (M) 200 Polyacetal PA 34100 7,340 m





Polypropylene (PP)                                +1                                                        +110
Polyacetal (POM) -40 +90
Polyethylene (PE) -60 +100



ALHAN® belts with smooth linear surface have a locking system that can be easily changed in case of damage to the (modular) mesh tape in the dimensions you want. It is compatible with various industries – 46 +110 (It can be applied with different materials for places that require special working conditions.) When you prefer long conveyor lines, our ALHAN 50.8 mm pitch (2 inch) mesh belts are preferred in the following situations. It does not require much supervision due to its high strength properties. ALHAN (modular) Belt for healthy transportation is long-lasting, requires less maintenance and saves energy. ALHAN (modular) Knitted belts have less initial investment and are an innovative product.

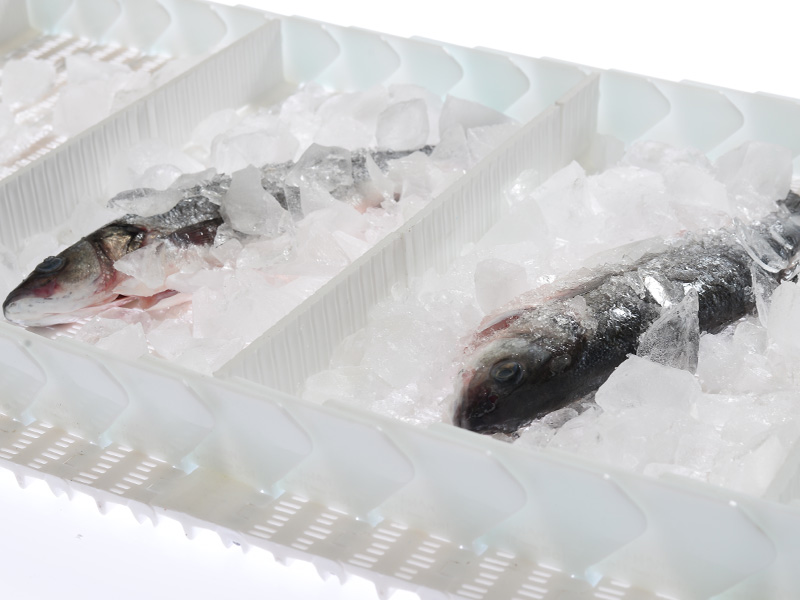

Polyacetal (POM) Plastic (modular) mesh belts are the solution for frozen products – they can work at 46 +70 degrees.

Polypropylene (PP) Plastic (modular) mesh tapes are more resistant to acidic basic and salty environments at +1 + 110 degrees.

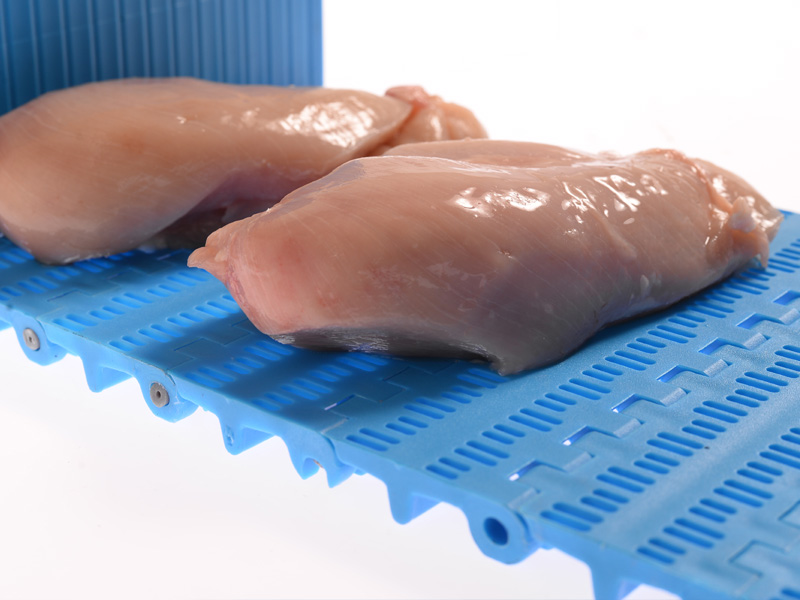

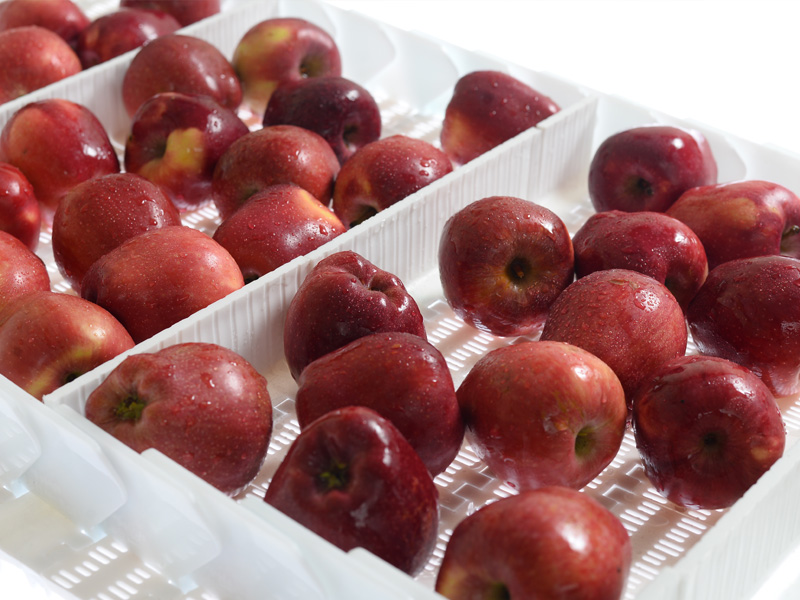

Model 981 (modular) filtered belt surface is flat and smooth, and is suitable for the food industry with its clean structure. It has FDA food grade document approval.

The industrial areas of the usage of 50.8mm filtered modular belt;
